The Refresh widget

Author: Christian Mayer

Available since: 2014

Description

With the widget refresh, the visu is added a switch, which allows the visu to reload the displayed data.

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Basics.

The behaviour and appearance of the Refresh widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ….. are mandatory, all the others are optional and be omitted.

Allowed attributes in the Refresh-element

Element	Attribute
	Name	Content	Description
refresh	value	string
	mapping	string	Map the bus value to a different value, text or symbol for displaying. See also Mapping
	styling	string	Change the color of the displayed value depending on its value. See also Styling
	align	left, right or center
	flavour	string	Selection of a display variant. See also Flavour.
	bind_click_to_widget	true or false	use the whole widget area to react on click events
	class	string	Add this value to the CSS class so that it can be formatted by a user provided style sheet.

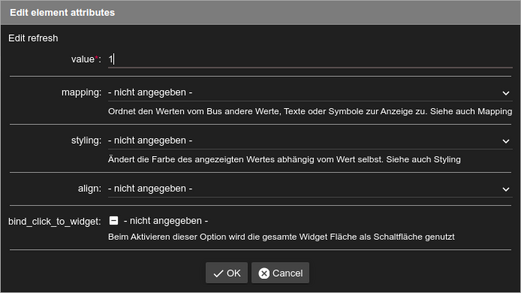

Attributes in the editor (simple view) [1]

Allowed child-elements and their attributes

Element	Attribute
Structure	Name	Content	Description
refresh layout	colspan	decimal	Amount of columns this widget should be wide.
	colspan-m	decimal	Overrules the amount of columns on a medium screen.
	colspan-s	decimal	Overrules the amount of columns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
refresh label icon	name	string	Name of the icon registration.
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string	Color of the icon in CSS notation (e.g. #1188FF).
	styling	string	Change the color of the displayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formatted by a user provided style sheet.
refresh label #text		string	Text to display a label for the widget.

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Refresh widget.
