The diagram plugin

Author: Michael Hausl [michael at hausl dot com]

Available since: 0.6.0

Description

This plugins integrates flot (diagrams in javascript) into the visualization. server-side data-storage is rrd

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Basics.

The behaviour and appearance of the diagram plugins can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ….. are mandatory, all the others are optional and be omitted.

Allowed attributes in the diagram-element

Element	Attribute
	Name	Content	Description
diagram	width	string	Deprecated: please remove attribute and use layout with colspan instead for best results.
	height	string	Deprecated: please remove attribute and use layout with rowspan instead for best results.
	popup	true or false	Makes diagram clickable and opens fullscreen view of diagram when clicked
	previewlabels	true or false	Show labels on inline-diagram in widget
	series	hour, day, week, month, year, fullday or custom	Defines the base unit for the period attribute
	refresh	integer	refresh-rate in seconds, no refresh if missing
	period	string	Defines whether an interval of hours, weeks, month or years is displayed (as multiple of “series)”
	gridcolor	string	Color of the grid shown behind the graphs
	legend	both, inline, popup or none	Defines whether legend is shown in combination with popup attribute. “none” => no legend, “both” => legend is shown in small inline diagram and popup, “inline” => legend in inline diagram only, “popup” => legend is only displayed in popup diagram
	legendposition	nw, ne, sw or se	Defines position of legend in diagram
	title	string	Adds a title to the diagram
	tooltip	true or false	Enables a tooltip which displays the current value where the graph is clicked
	timeformat	string	The time format for formatting the x-axis of diagrams with following placeholders:<br/> %a: weekday name (customizable) %b: month name (customizable) %d: day of month, zero-padded (01-31) %e: day of month, space-padded ( 1-31) %H: hours, 24-hour time, zero-padded (00-23) %I: hours, 12-hour time, zero-padded (01-12) %m: month, zero-padded (01-12) %M: minutes, zero-padded (00-59) %q: quarter (1-4) %S: seconds, zero-padded (00-59) %y: year (two digits) %Y: year (four digits) %p: am/pm %P: AM/PM (uppercase version of %p) %w: weekday as number (0-6, 0 being Sunday)
	timeformatTooltip	string	The time format for formatting the tooltip’s time value. See timeformat attribute for possible values
	zoomYAxis	true or false	Defines whether zoom acts on y-axis in addition to x-axis
	seriesStart	string	In case series attribute is of type “custom” the value of this attribute is used for the start of the series.
	seriesEnd	string	In case series attribute is of type “custom” the value of this attribute is used for the end of the series.
	seriesResolution	integer	In case series attribute is of type “custom” the value of this attribute is used for the resolution of the series.

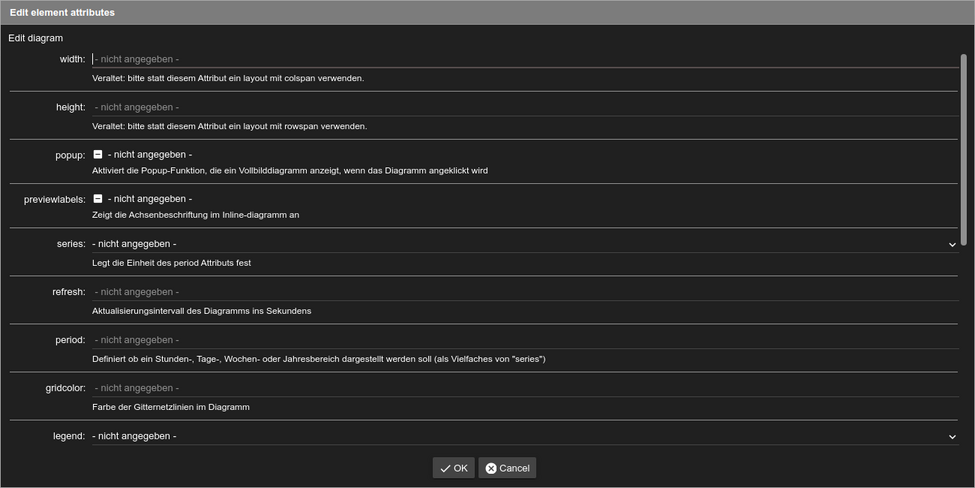

Attributes in the editor (simple view) [1]

Allowed child-elements and their attributes

Element	Attribute
Structure	Name	Content	Description
diagram layout	colspan	decimal	Amount of columns this widget should be wide.
	colspan-m	decimal	Overrules the amount of columns on a medium screen.
	colspan-s	decimal	Overrules the amount of columns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
diagram label icon	name	string	Name of the icon registration.
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string	Color of the icon in CSS notation (e.g. #1188FF).
	styling	string	Change the color of the displayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formatted by a user provided style sheet.
diagram label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
diagram axis	label	string	Defines the label of the axis
	min	decimal	Defines the minimum of y-axis.
	max	decimal	Defines the maximum of y-axis.
	position	left or right
	unit	string	Defines the unit shown behind values in y-axis and tooltip
	decimals	integer	Defines the number of digits in values of y-axis
diagram axis #text		string

Element	Attribute
Structure	Name	Content	Description
diagram rrd	yaxis	string	Assigns the rrd-data to a y-axis
	color	string	Defines the color of the data-line in the graph
	label	string	Defines the label of the data-series in the legend
	scaling	decimal
	steps	true or false
	fill	true or false	Fill the space below the data-series or bar
	style	lines, bars or points
	barWidth	integer	Width of the bars in units of the x axis, contrary to most other measures that are specified in pixels. For instance, for time series the unit is milliseconds so 24 * 60 * 60 * 1000 produces bars with the width of a day.
	align	left, right or center
	datasourceIndex	integer	If there are multiple datasources in the RRD file this index defines which one to show. Use “rrdtool info” to find the correct index.
	consolidationFunction	AVERAGE, LAST, MIN or MAX	Choose one of the consolidation functions of the RRDTool (see http://rrdtool.org).
	resolution	integer	The standard resolution for retrieving data from the RRD file can be overriden with a custom value in seconds.
	offset	integer	An offset in seconds to modify the timestamp of the retrieved data from the RRD file.
diagram rrd #text		string

Element	Attribute
Structure	Name	Content	Description
diagram influx	measurement	string	Selection of the database and measurement (example: timeseries_db/KNX_LINE1)
	yaxis	string	Assigns the InfluxDB-data to a y-axis
	color	string	Defines the color of the data-line in the graph
	label	string	Defines the label of the data-series in the legend
	scaling	decimal
	steps	true or false
	fill	true or false	Fill the space below the data-series or bar
	style	lines, bars or points
	barWidth	integer	Width of the bars in units of the x axis, contrary to most other measures that are specified in pixels. For instance, for time series the unit is milliseconds so 24 * 60 * 60 * 1000 produces bars with the width of a day.
	align	left, right or center
	authentication	string	When the InfluxDB requires authentication the credentials in the hidden config with this key will be used.
	field	string	If there are multiple fields in the InfluxDB series this field defines which one to show. When not set a default of “*” will be used. Warning: when more than one field is selected none will be displayed.
	resolution	integer	The temporal resolution for the InfluxDB data can be set to a fixed interval (value in seconds). A value of “0” disables the grouping.
	consolidationFunction	COUNT, DERIVATIVE, DERIVATIVE_COUNT, DERIVATIVE_MEAN, DERIVATIVE_MEDIAN, DERIVATIVE_MODE, DERIVATIVE_SUM, DERIVATIVE_FIRST, DERIVATIVE_LAST, DERIVATIVE_MIN, DERIVATIVE_MAX, DERIVATIVE_PERCENTILE_1, DERIVATIVE_PERCENTILE_5, DERIVATIVE_PERCENTILE_10, DERIVATIVE_PERCENTILE_20, DERIVATIVE_PERCENTILE_25, DERIVATIVE_PERCENTILE_75, DERIVATIVE_PERCENTILE_80, DERIVATIVE_PERCENTILE_90, DERIVATIVE_PERCENTILE_95, DERIVATIVE_PERCENTILE_99, DIFFERENCE, DIFFERENCE_COUNT, DIFFERENCE_MEAN, DIFFERENCE_MEDIAN, DIFFERENCE_MODE, DIFFERENCE_SUM, DIFFERENCE_FIRST, DIFFERENCE_LAST, DIFFERENCE_MIN, DIFFERENCE_MAX, DIFFERENCE_PERCENTILE_1, DIFFERENCE_PERCENTILE_5, DIFFERENCE_PERCENTILE_10, DIFFERENCE_PERCENTILE_20, DIFFERENCE_PERCENTILE_25, DIFFERENCE_PERCENTILE_75, DIFFERENCE_PERCENTILE_80, DIFFERENCE_PERCENTILE_90, DIFFERENCE_PERCENTILE_95, DIFFERENCE_PERCENTILE_99, ELAPSED, INTEGRAL, MAX, MEAN, MEDIAN, MIN, MODE, SPREAD, STDDEV or SUM	Choose one of the available data aggregation functions - required when the “resolution” attribute is set.
	fillMissing	string	Optional when attribute “resolution” is set: fill the time steps where data is missing by this value or one of “linear”, “none”, “null” or “previous”.
	offset	integer	An offset in seconds to modify the displayed timestamps of the retrieved data from the InfluxDB.
diagram influx tag	key	string
	operator	=, !=, <, <=, >, >=, =~ or !~
	value	string
diagram influx and tag	key	string
	operator	=, !=, <, <=, >, >=, =~ or !~
	value	string
diagram influx or tag	key	string
	operator	=, !=, <, <=, >, >=, =~ or !~
	value	string

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the diagram plugin.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

Footnotes

[1]

The simple view might not show everything. To see all elements/attributes use the expert view.
