The InfoTrigger widget

Author: Christian Mayer

Available since: 2012

Description

Adds an element to the visu that contains two buttons and a value indication for feedback from the BUS. (E.g. for multimedia control

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Basics.

The behaviour and appearance of the InfoTrigger widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ….. are mandatory, all the others are optional and be omitted.

Allowed attributes in the InfoTrigger-element

Element	Attribute
	Name	Content	Description
infotrigger	upvalue	string	Defines the value which is sent on a long press of the left button.
	shortupvalue	string	Defines the value which is sent on a short press of the left button.
	downvalue	string	Defines the value which is sent on a long press of the right button.
	shortdownvalue	string	Defines the value which is sent on a short press of the right button.
	uplabel	string	Defines the label which is displayed on the left button.
	downlabel	string	Defines the label which is displayed on the right button.
	shorttime	decimal	Time in milliseconds that is accepted as shorttime.
	change	absolute or relative	Might be ‘absolute’ or ‘relative’.
	min	decimal
	max	decimal
	mapping	string	Map the bus value to a different value, text or symbol for displaying. See also Mapping
	styling	string	Change the color of the displayed value depending on its value. See also Styling
	align	left, right or center
	format	string	Formatting of the value (printf syntax).
	infoposition	left, middle or right
	flavour	string	Selection of a display variant. See also Flavour.
	class	string	Add this value to the CSS class so that it can be formatted by a user provided style sheet.
	send-long-on-release	true or false	Fire the long press event after the button is released (=true) or immediately after the threshold is exceeded (=false).

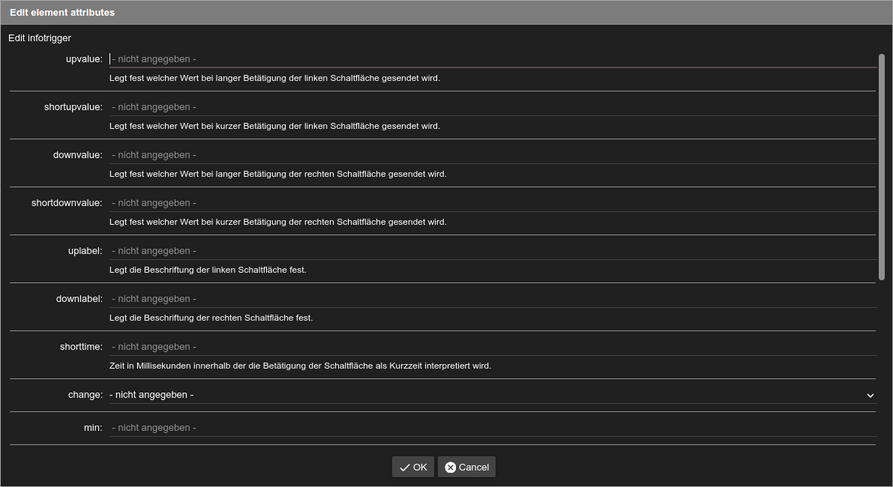

Attributes in the editor (simple view) [1]

Allowed child-elements and their attributes

Element	Attribute
Structure	Name	Content	Description
infotrigger layout	colspan	decimal	Amount of columns this widget should be wide.
	colspan-m	decimal	Overrules the amount of columns on a medium screen.
	colspan-s	decimal	Overrules the amount of columns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
infotrigger label icon	name	string	Name of the icon registration.
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string	Color of the icon in CSS notation (e.g. #1188FF).
	styling	string	Change the color of the displayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formatted by a user provided style sheet.
infotrigger label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
infotrigger address	transform	string	Transformation of the bus system value to be shown.
	mode	disable, read, write or readwrite	“disable” deactivates the communication, “read” will only fetch data from the backend, “write” will only write to it and an address with “readwrite” will be both, read from and written to.
	variant	string
	format-pos	decimal	Position for format string when multiple addresses are used.
	selector	string	Only MQTT: JSON selector
	qos	decimal	Only MQTT: QoS
	retain	true or false	Only MQTT: retain flag
	ignore-error	true or false	Only MQTT: ignore decode errors.
infotrigger address #text		string	The GA (like: 12/0/7) for KNX-backends, the item name for openHAB-backend or the MQTT topic

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the InfoTrigger widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!
