The WgPluginInfo widget
Description
Adds an dynamic field to the visu that shows live information from a WireGate plugin.
Note: The service helper from https://raw.githubusercontent.com/OpenAutomationProject/Wiregate/master/tools/wg-plugindb/wg-plugindb.php must be “installed” in the directory /var/www/ (i.e. the web root)
Settings
For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Basics.
The behaviour and appearance of the WgPluginInfo widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.
Attributes underlined by ….. are mandatory, all the others are optional and be omitted.
Allowed attributes in the WgPluginInfo-element
Allowed child-elements and their attributes

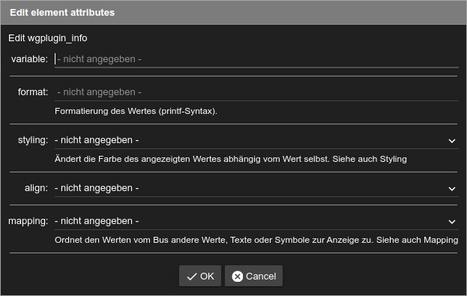

Elements in the editor
Examples
It is possible to manually edit the visu_config.xml and add an entry for the WgPluginInfo widget.
Caution
Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!
