The Roundbar widget

Author: Christian Mayer

Available since: 0.12.0 (2020)

Description

Adds a display to the visu that can represent values from the BUS and shows them with a round bar.

The design can the set in many different details:

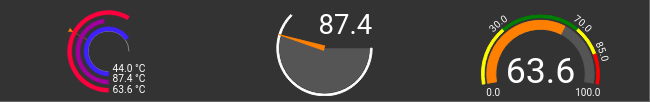

Example for complex Roundbar widgets

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Basics.

The behaviour and appearance of the Roundbar widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ….. are mandatory, all the others are optional and can be omitted.

Allowed attributes in the Roundbar-element

Element	Attribute
	Name	Content	Description
roundbar	min	decimal	Minimal value.
	max	decimal	Maximum value.
	format	string	Formatting of the value (printf syntax).
	axisradius	decimal	Radius of the round axis.
	axiswidth	decimal	Width of the axis.
	axiscolor	string	Color of the axis.
	ranges	string	Colored ranges.
	minorradius	decimal	Radius for the minor ticks.
	minorwidth	decimal	Width of the minor ticks.
	minorspacing	decimal	Spacing of minor ticks.
	minorcolor	string	Color of minor ticks.
	majorradius	decimal	Radius for the major ticks.
	majorwidth	decimal	Width of the major ticks.
	majorposition	string	Positions of the major ticks, separated by “;”.
	majorcolor	string	Color of the major ticks.
	labels	string	Labels, separated by “;”.
	labelstyle	string	CSS style of label text.
	start	decimal	Start angle in degrees.
	startarrow	decimal	Arrow size of bar start.
	end	decimal	End angle in degrees.
	endarrow	decimal	Arrow size of bar end.
	arrowtype	angle or distance	Unit type of arrow size.
	spacing	decimal	Spacing between the bars for automatic radius selection.
	overflowarrow	true or false	Show an arrow when the value is out of range.
	fontsize	decimal	Font size of the value.
	textx	decimal	X position of the value.
	texty	decimal	Y position of the value.
	textlength	decimal	Length of the space to reserve for the value.
	textanchor	start, middle or end	Orientation of value display in relation to the anchor point.
	linespace	decimal	Distance between the rows for multiple values.
	bboxgrow	string	Enlargement of the mounding box in virtual pixels to take care of sticking out parts (everywhere or horizontal;vertical or left;up;right;down).
	debug	true or false	Activates the debug mode and shows the automatic determined border.
	preset	A, B or bridge	Choose a preset design.

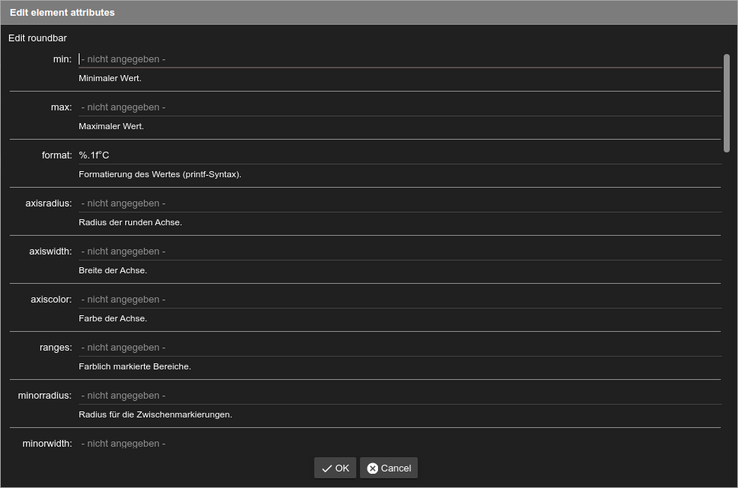

Attributes in the editor (simple view) [1]

Allowed child-elements and their attributes

Element	Attribute
Structure	Name	Content	Description
roundbar layout	colspan	decimal	Amount of columns this widget should be wide.
	colspan-m	decimal	Overrules the amount of columns on a medium screen.
	colspan-s	decimal	Overrules the amount of columns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
roundbar label icon	name	string	Name of the icon registration.
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string	Color of the icon in CSS notation (e.g. #1188FF).
	styling	string	Change the color of the displayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formatted by a user provided style sheet.
roundbar label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
roundbar address	transform	string	Transformation of the bus system value to be shown.
	mode	disable, read, write or readwrite	“disable” deactivates the communication, “read” will only fetch data from the backend, “write” will only write to it and an address with “readwrite” will be both, read from and written to.
	type	bar or pointer	Type of the indicators.
	showvalue	true or false	Shows the value for this indicator.
	min	decimal	Overrules the minimum value of the widget for this indicator.
	max	decimal	Overrules the maximum value of the widget for this indicator.
	radius	decimal	Radius of the indicator.
	width	decimal	Width of the indicator.
	thickness	decimal	Thickness of the indicator (only for pointer).
	valuepos	integer	Position (sorting) of the value of this indicator.
	style	string	CSS style for the indicator.
roundbar address #text		string	The GA (like: 12/0/7) for KNX-backends, the item name for openHAB-backend or the MQTT topic

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Info widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

<roundbar>
     <address transform="DPT:9.001" mode="read">3/3/1</address>
 </roundbar>

Design elements

The roundbar widget is assembled by many different elements, some of them are optional and can be configured by different means. The realisation of the roundbar is basically a SVG block that is included in the visu page, so it’s appearance can be altered by using CSS rules (see also “Change existing design”).

Indicators

The most obvious element is an indicator which is displayed as a round bar or a pointer. A Roundbar widget can contain multiple indicators at the same time.

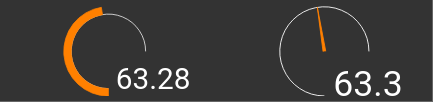

Bar and pointer

<group nowidget="true">
    <layout colspan="4" rowspan="2"/>
    <roundbar>
        <layout colspan="2" rowspan="2"/>
        <address transform="DPT:9.001" mode="read">3/3/1</address>
    </roundbar>
    <roundbar format="%.1f">
        <layout colspan="2" rowspan="2"/>
        <address transform="DPT:9.001" type="pointer" radius="50" width="-50" thickness="3" mode="read">3/3/1</address>
    </roundbar>
</group>

Marking

To partition the axis markings can be used. The values for the big (major) markings can be chosen freely, the small (minor) markings are evenly distributed.

Big and small markings

<roundbar majorradius="35" majorwidth="15" majorposition="0;20;40;60;80;100" minorradius="45" minorwidth="5" minorspacing="5" format="%.1f">
    <layout colspan="2" rowspan="2"/>
    <address transform="DPT:9.001" mode="read">3/3/1</address>
</roundbar>

Labels

The axis can be labeled with different ways. For this the attribute labels must contain the values separated by a semicolon:

labels="0;20;40;80;100"

Each value can have an individual radius as well as an individual text to display:

value,radius

value,radius,text

Also the position (outside, center and inside) as well as the orientation (horizontal, parallel, perpendicular, roundstart, roundmiddle and roundend) can be chosen and put in front of the text, separated by a colon:

position:value

,orientation:value

position,orientation:value

It is sufficient to put the position, the orientation and also the radius just in front of the first value, all following values are inheriting this property. For special effects it’s possible to change these properties multiple times:

Labels

<roundbar labels="inside:0,44;25;50;75;100" majorradius="45" majorwidth="5" majorposition="0;25;50;75;100" minorradius="48" minorwidth="2" minorspacing="5" format="%.1f">
    <layout colspan="2" rowspan="2"/>
    <address transform="DPT:9.001" mode="read">3/3/1</address>
</roundbar>

Ranges

To have a quick overview of the current value it is possible to mark value ranges by a color. For this the ranges attribute needs a list of range definitions that is separated by a semicolon.

Each range itself consists out of a list that is separated by colons:

value,radius,width,color

start...end,radius,width,color

Example:

ranges="0...70,63,3,green;70...100,63,3,red;70,60,9,#ff0"

This defines three ranges. First one for the values between 0 and 70 with a green arc of radius 63 and a width of 3. Then a red arc from 70 to 100, also with radius 63 and a width of 3. Last a line is drawn at value 70 that goes out from radius 60 for 9 units and has the color #ff0 which is a bright yellow.

Ranges

<roundbar ranges="0...70,63,3,green;70...100,63,3,red;70,60,9,#ff0" format="%.1f">
    <layout colspan="2" rowspan="2"/>
    <address transform="DPT:9.001" mode="read">3/3/1</address>
</roundbar>

Tips

Presets

To simplify the configuration there are preset designs. All details of a preset can be overruled by the configuration file.

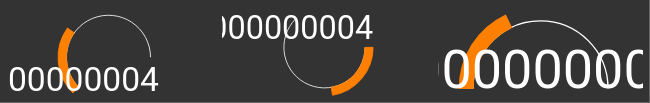

Preset “A”, “B” and “bridge”

<group nowidget="true">
    <roundbar preset="A">
        <layout colspan="2" rowspan="2"/>
        <address transform="DPT:9.001" mode="read">3/3/1</address>
    </roundbar>
    <roundbar preset="B">
        <layout colspan="2" rowspan="2"/>
        <address transform="DPT:9.001" mode="read">3/3/1</address>
    </roundbar>
    <roundbar preset="bridge">
        <layout colspan="2" rowspan="2"/>
        <address transform="DPT:9.001" mode="read">3/3/1</address>
    </roundbar>
</group>

Debug mode

The Roundbar widget tries to fill in the available space as big as possible. To be able to do so it must know already during the creation of the visu page how big its content can become. Especially for the text parts like the labels or the value this is not possible in an automated way.

For this the attribute bboxgrow can add to the automatically determined value a user specified distance. When it contains a single number this will be added on all sides simultaneously. Separated by a semicolon it is possible to add specific distances for horizontal;vertical. And for special effects each side can be adjusted individually by left;up;right;down.

To be able to reach a good result quicker, especially as it is an iterative effort to get the best numbers, the attribute debug can be set to true to get a blue frame to see the automatically derived dimensions and a green frame for the final dimensions.

Activated debug mode

<roundbar debug="true" bboxgrow="50;0">
    <layout colspan="2" rowspan="2"/>
    <address transform="DPT:9.001" mode="read">3/3/1</address>
</roundbar>

Footnotes

[1]

The simple view might not show everything. To see all elements/attributes use the expert view.
