The RSSLog plugin

Author: Michael Markstaller

Available since: 2011

Description

The RSSLog plugin adds interactive log messages to the visu page which are based on the RSS feed technology.

These log messaged can be used for both, a static event log (e.g. when the door bell was ringed or when a fault happened in the installation), as well as an interactive one. There the entries can be confirmed by the user as it is relevant for a todo list.

A click on the log list opens a popup screen. In this screen you can see more entries and it is possible - for the interactive version - to confirm entries.

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Basics.

The behaviour and appearance of the RSSLog plugin can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ….. are mandatory, all the others are optional and be omitted.

Allowed attributes in the rsslog-element

Element	Attribute
	Name	Content	Description
rsslog	src	string	URL of the rsslog.php.
	database	string	ID/Name of the database configuration as used in the hidden configuration.
	refresh	integer	Refresh the display automatically after this amount of seconds.
	delay	integer	Additional delay between the refresh request and the refresh.
	limit	integer	Number of entries to show.
	mode	first, last or rollover	Show only the first, the last or over the time (-> refresh) changing (rollover) entries.
	datetime	true or false	Show date and time of entry.
	timeformat	string	Format of the date and time (in strftime syntax).
	filter	string	Only show entries with this filter set.
	itemack	modify, display or disable	Defines whether the state can be modified, only be displayed or not be displayed (disable).
	future	integer	Hours for coming events.

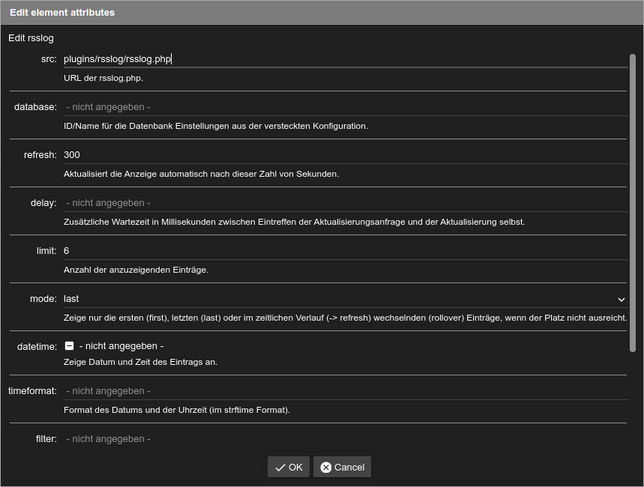

Attributes in the editor (simple view) [1]

Allowed child-elements and their attributes

Element	Attribute
Structure	Name	Content	Description
rsslog layout	colspan	decimal	Amount of columns this widget should be wide.
	colspan-m	decimal	Overrules the amount of columns on a medium screen.
	colspan-s	decimal	Overrules the amount of columns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
rsslog label icon	name	string	Name of the icon registration.
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string	Color of the icon in CSS notation (e.g. #1188FF).
	styling	string	Change the color of the displayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formatted by a user provided style sheet.
rsslog label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
rsslog address	transform	string	Transformation of the bus system value to be shown.
	mode	disable, read, write or readwrite	“disable” deactivates the communication, “read” will only fetch data from the backend, “write” will only write to it and an address with “readwrite” will be both, read from and written to.
	variant	string
	format-pos	decimal	Position for format string when multiple addresses are used.
	selector	string	Only MQTT: JSON selector
	qos	decimal	Only MQTT: QoS
	retain	true or false	Only MQTT: retain flag
	ignore-error	true or false	Only MQTT: ignore decode errors.
rsslog address #text		string	The GA (like: 12/0/7) for KNX-backends, the item name for openHAB-backend or the MQTT topic

Element in the editor

Note

Generally there is no technical possibility that a server of a RSS feed tells the client to update it due to new content. I.e. the client has no information about when it is time to update the content. The RSSLog reloads the content based on the refresh attribute, but any new data written to the database inbetween will not be shown till the next refresh.

But when the optional <address> element is given the RSSLog plugin will reload the data as soon as any value is written to that address. The attribute delay defines a delay before the data is fetched to be able to compensate possible any time that the logic engine needs to store it first.

XML Syntax

Alternatively it is possible to manually add the rsslog plugin entry to the visu_config.xml.

Caution

In the config only the UTF-8 charset is allowed. So an editor that is set to UTF-8 mode must be used.

Simple example: static list

The entries of this example can be created by these URLs:

http://server/resource/plugins/rsslog/rsslog.php?&c=Door%20bell
http://server/resource/plugins/rsslog/rsslog.php?&c=Mailbox
http://server/resource/plugins/rsslog/rsslog.php?&c=Ventilation%20filter%20blocked
http://server/resource/plugins/rsslog/rsslog.php?&c=Smoke%20alarm

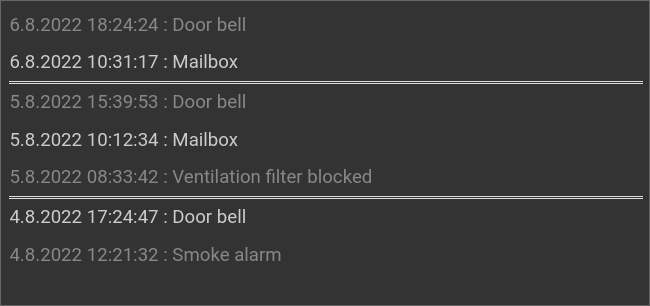

RSSLog, simple example

...
<meta>
    <plugins>
        <plugin name="rsslog"/>
    </plugins>
</meta>
...
<rsslog src="plugins/rsslog/rsslog.php" refresh="300" limit="6" mode="last">
    <layout rowspan="6" colspan="6"/>
    <address transform="DPT:1.001" mode="readwrite">12/7/1</address>
</rsslog>

Simple example: static list with mapping

The entries of this example can be created by these URLs:

http://server/resource/plugins/rsslog/rsslog.php?&c=Door%20bell&mapping=StateDoorBell
http://server/resource/plugins/rsslog/rsslog.php?&c=Mailbox&mapping=StateMail
http://server/resource/plugins/rsslog/rsslog.php?&c=Ventilation%20filter%20blocked&mapping=StateService
http://server/resource/plugins/rsslog/rsslog.php?&c=Smoke%20alarm&mapping=StateSmokedetector

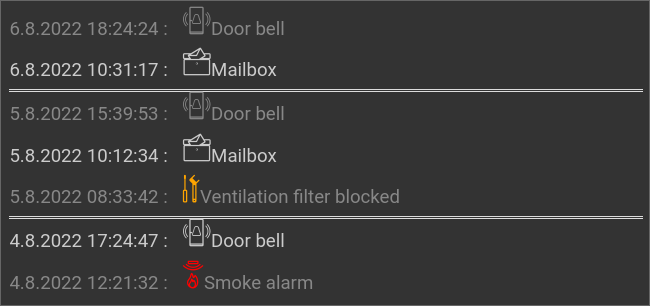

RSSLog, simple example with mapping

...
<meta>
    <plugins>
        <plugin name="rsslog"/>
    </plugins>
    <mappings>
        <mapping name="StateMail">
            <entry value="0"><icon name="message_postbox_mail"/> </entry>
        </mapping>
        <mapping name="StateDoorBell">
            <entry value="0"><icon name="message_bell_door"/> </entry>
        </mapping>
        <mapping name="StateService">
            <entry value="0"><icon name="message_service" color="#FFA500"/> </entry>
        </mapping>
        <mapping name="StateSmokedetector">
            <entry value="0"><icon name="secur_smoke_detector" color="#FF0000"/> </entry>
        </mapping>
    </mappings>
</meta>
...
<rsslog src="plugins/rsslog/rsslog.php" refresh="300" limit="7" mode="last">
    <layout rowspan="6" colspan="6"/>
    <address transform="DPT:1.001" mode="readwrite">12/7/1</address>
</rsslog>

Simple example: interactive list

The entries of this example can be created by these URLs:

http://server/resource/plugins/rsslog/rsslog.php?&c=Change%20fish%20tank%201%20water&t[]=fish&mapping=StateConfirm&state=0
http://server/resource/plugins/rsslog/rsslog.php?&c=Change%20fish%20tank%202%20water&t[]=fish&mapping=StateConfirm&state=0
http://server/resource/plugins/rsslog/rsslog.php?&c=Replace%20ventilation%20filter&t[]=ventilation&mapping=StateConfirm&state=0

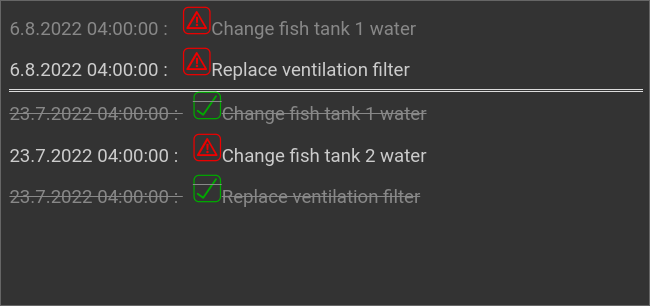

RSSLog, interactive list

...
<meta>
    <plugins>
        <plugin name="rsslog"/>
    </plugins>
    <mappings>
        <mapping name="StateConfirm">
            <entry value="0"><icon name="info_warning" color="#EE0000"/> </entry>
            <entry value="1"><icon name="info_ack" color="#00AA00"/> </entry>
        </mapping>
    </mappings>
</meta>
...
<rsslog src="plugins/rsslog/rsslog.php" refresh="300" limit="6" mode="last">
    <layout rowspan="6" colspan="6"/>
    <address transform="DPT:1.001" mode="readwrite">12/7/1</address>
</rsslog>

Complex example with multiple categories

Using tags it is possible have multiple categories. In the display each tag will be added to the HTML class attribute so that it can be formatted by CSS rules. This example uses this feature for the colors of the different garbage bin colors.

The entries of this example can be created by these URLs:

http://server/resource/plugins/rsslog/rsslog.php?&c=Put%20out%20the%20bio%20garbage%20bin&t[]=brown&mapping=StateConfirmGarbage&state=0
http://server/resource/plugins/rsslog/rsslog.php?&c=Put%20out%20the%20yellow%20garbage%20bin&t[]=yellow&mapping=StateConfirmGarbage&state=0
http://server/resource/plugins/rsslog/rsslog.php?&c=Put%20out%20the%20paper%20garbage%20bin&t[]=blue&mapping=StateConfirmGarbage&state=0
http://server/resource/plugins/rsslog/rsslog.php?&c=Refuel&t[]=car&mapping=StateConfirmFuel&state=0

The two oldest entries were already confirmed by the user.

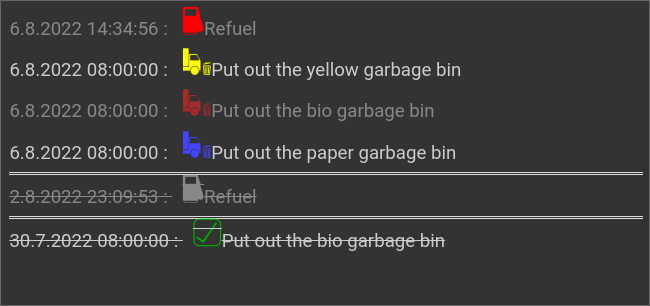

RSSLog, complex example

...
<meta>
    <plugins>
        <plugin name="rsslog"/>
    </plugins>
    <mappings>
        <mapping name="StateConfirmGarbage">
            <entry value="0"><icon name="message_garbage_collection"/> </entry>
            <entry value="1"><icon name="info_ack" color="#00AA00"/> </entry>
        </mapping>
        <mapping name="StateConfirmFuel">
            <entry value="0"><icon name="scene_gas_station" color="#FF0000"/> </entry>
            <entry value="1"><icon name="scene_gas_station"/> </entry>
        </mapping>
    </mappings>
</meta>
...
<rsslog src="plugins/rsslog/rsslog.php" refresh="300" limit="6" mode="last">
    <layout rowspan="6" colspan="6"/>
    <address transform="DPT:1.001" mode="readwrite">12/7/1</address>
</rsslog>

External interaction with the data

The RSSLog plugin of the CometVisu is just for the display of the data of the database. It must be filled by an external logic engine. For that it is highly recommended to not access the database directly but use the same HTTP API that the RSSLog plugin is using.

All calls are simple HTTP GET requests that a logic engine can generate easily.

API documentation

Parameter for all calls:

Key	Value
database	Entry in the hidden config where information about the database connection is stored.

Relevant entries in the hidden config are:

Key	Value
type	Database type: sqlite or mysql.
file	For sqlite: file (including path) for the database.
host	For mysql: host of the database.
port	For mysql, optional: port of the database.
user	For mysql: user name to log in to the database.
pass	For mysql: password to log in to the database.
db	For mysql: name of the database.
logs	Optional: name of the Logs table.
version	Optional: name of the Version table.

New entry

Key	Value
c	Content
h	Optional: a header or title for the entry. This is only relevant for the RSS feed, but not for the RSSLog plugin.
t[]	Optional: tag to filter. It is possible to pass multiple tags when they are separated by a comma (e.g. t[]=tag1,tag2). The values of the tags are added to the HTML class attribute of the value defined in the mapping, so that it can be formated by custom CSS rules.
state	Optional: status of the entry (0 or 1). This status can be changed interactively by a click on the entry.
mapping	Optional: Selection of the mapping for the display. This must be defined in the <meta> section of the configuration and can be used to show an icon at the entry. This mapping is also using the state of the entry.

Example: rsslog.php?c=Fish&t[]=blue,yellow

Note

New entries are usually generated by the logic engine by a request of this URL. Examples are shown below.

It is also possible to allow the user of the CometVisu to create manually a new entry. For that the URL trigger can be used with a URL following this schema.

Return log as RSS feed

Key	Value
f	Optional: filter; return only entries fitting for this filter
state	Optional: return only entries with this state
limit	Optional: number of entries to return
showmeta	Optional: when true the the title will be extended with meta information

Example: rsslog.php?f=yellow&state=0&limit=5

Show log on a HTML page

Key	Value
dump	(no value)

Example: rsslog.php?dump

Delete old entries

Key	Value
r	UNIX timestamp (seconds since 1.1.1970) of the oldest entry to keep
f	Optional: filter; only entries fitting this filter will be deleted

Example: rsslog.php?r=213&f=yellow

Note

To prevent the database growing too big old entries should be regularly deleted.

For that this URL can be called on a schedule like by a CRON job. E.g. to delete all entries older than a year this terminal command could be used:

wget http://server/resource/plugins/rsslog/rsslog.php?r=`date +%s -d "1 year ago"`

Manually the most simple way is to use the info page.

Delete one entry

Key	Value
d	ID of the entry

Example: rsslog.php?d=123

Return content in JSON format

Key	Value
j	(no value)

Example: rsslog.php?j

Update the status

Key	Value
u	ID of the entry
state	New value of the state

Example: rsslog.php?u=123&state=1

Show info page

The info page shows information about the configuration and the database like the number of stored entries. It also shows links to delete older entries.

Key	Value
info	(no value)

Example: rsslog.php?info

Example: API access from the Linux shell

The well known tools wget and curl can be used to send a HTTP GET request from the shell.

With these commands it is possible to create a new entry, in this example with the content bell and the database defined in the hidden config entry rsslog_db:

wget http://server/resource/plugins/rsslog/rsslog.php?database=rsslog_db&c=bell

Example: API access with Node-RED

At Node-RED the http request can be used to create a new entry.

In this example each ring of the door bell shall be used to create a new entry. For this it is listened on the KNX and when a true is sent on the right GA the URL to create a new entry is called:

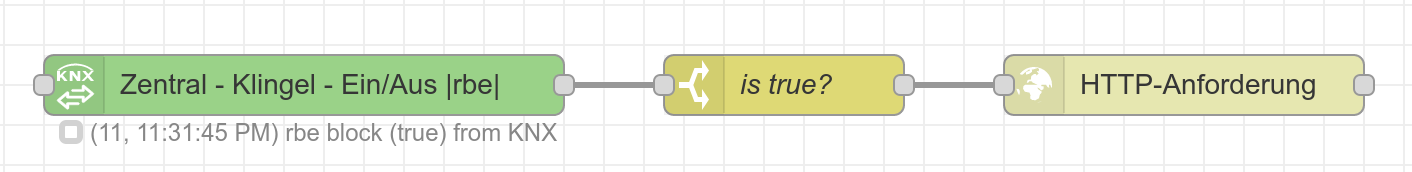

Simple Node-RED flow.

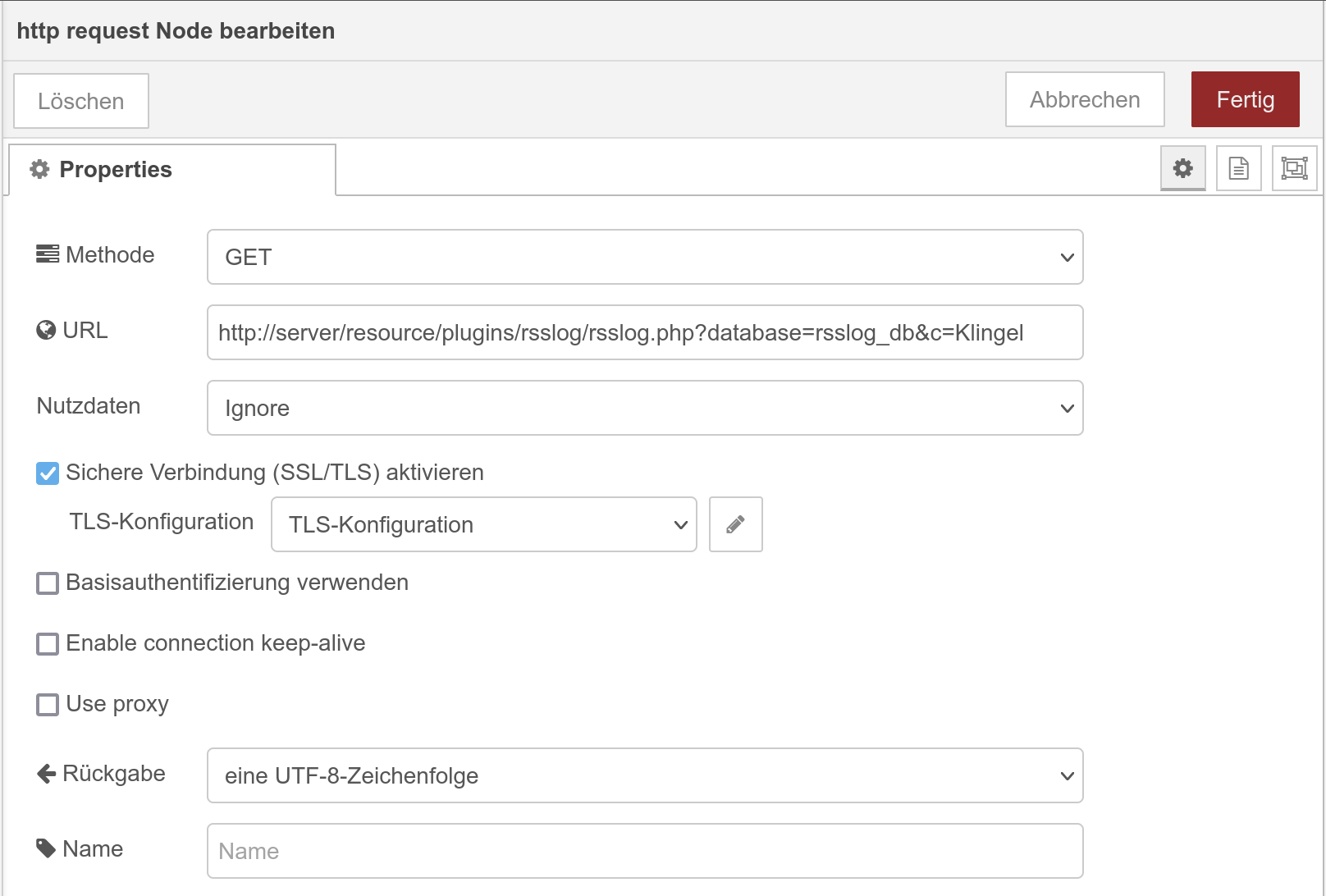

Configuration of the http request for the simple Node-RED flow.

It is also possible to define the text for the entry dynamically:

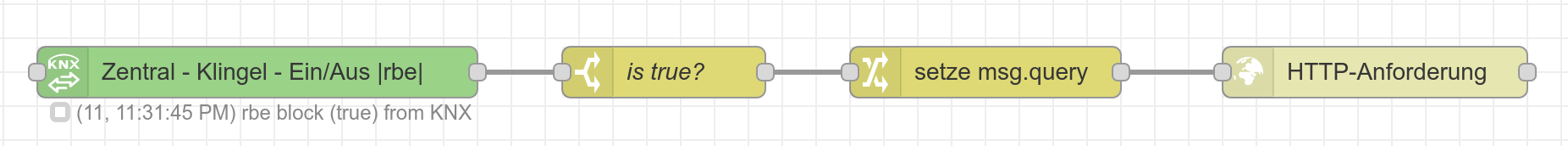

Node-RED flow with dynamic setting of the RSSLog text.

Configuration of the http request for the dynamic Node-RED flow.

Example: API access with the Timberwolf server

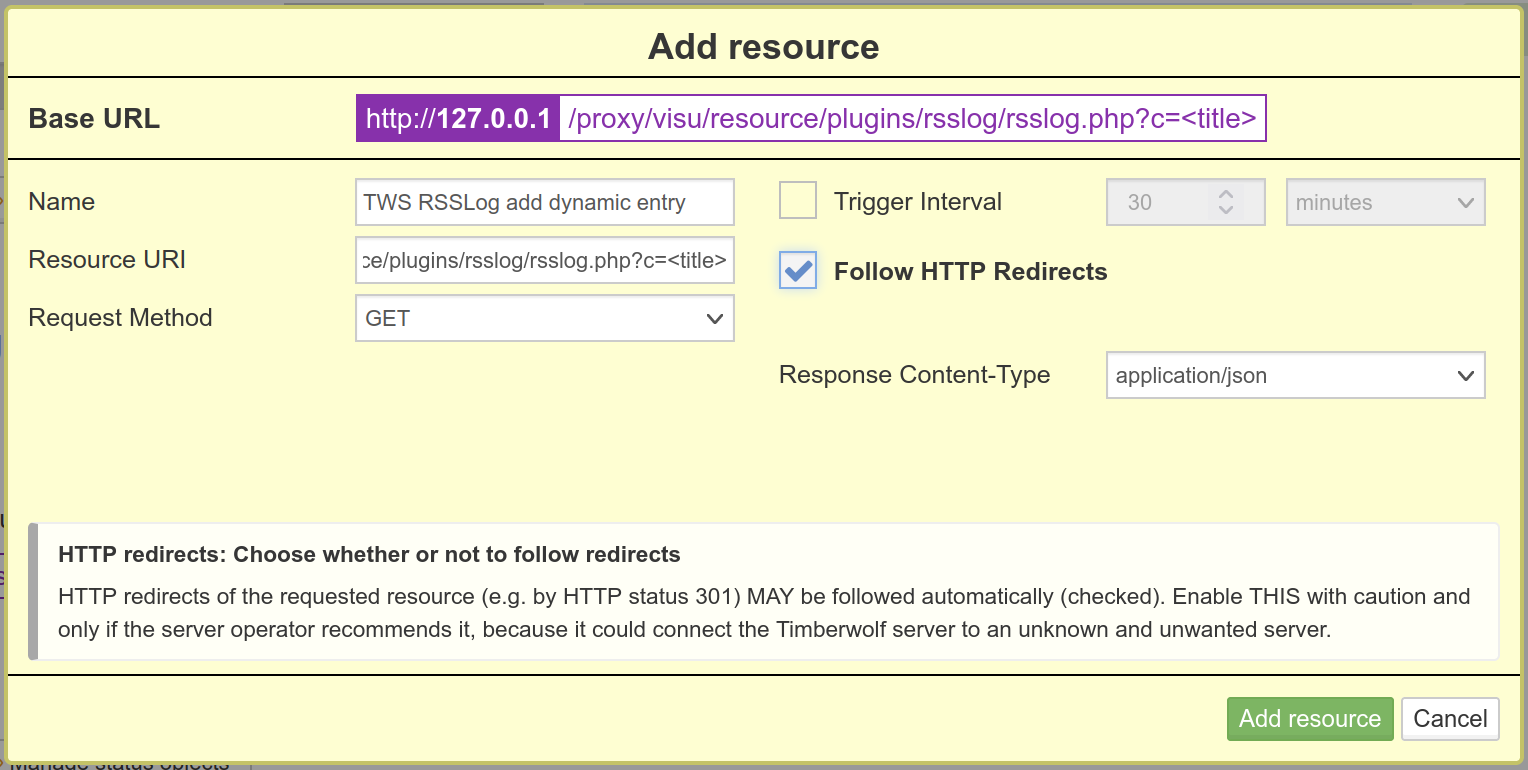

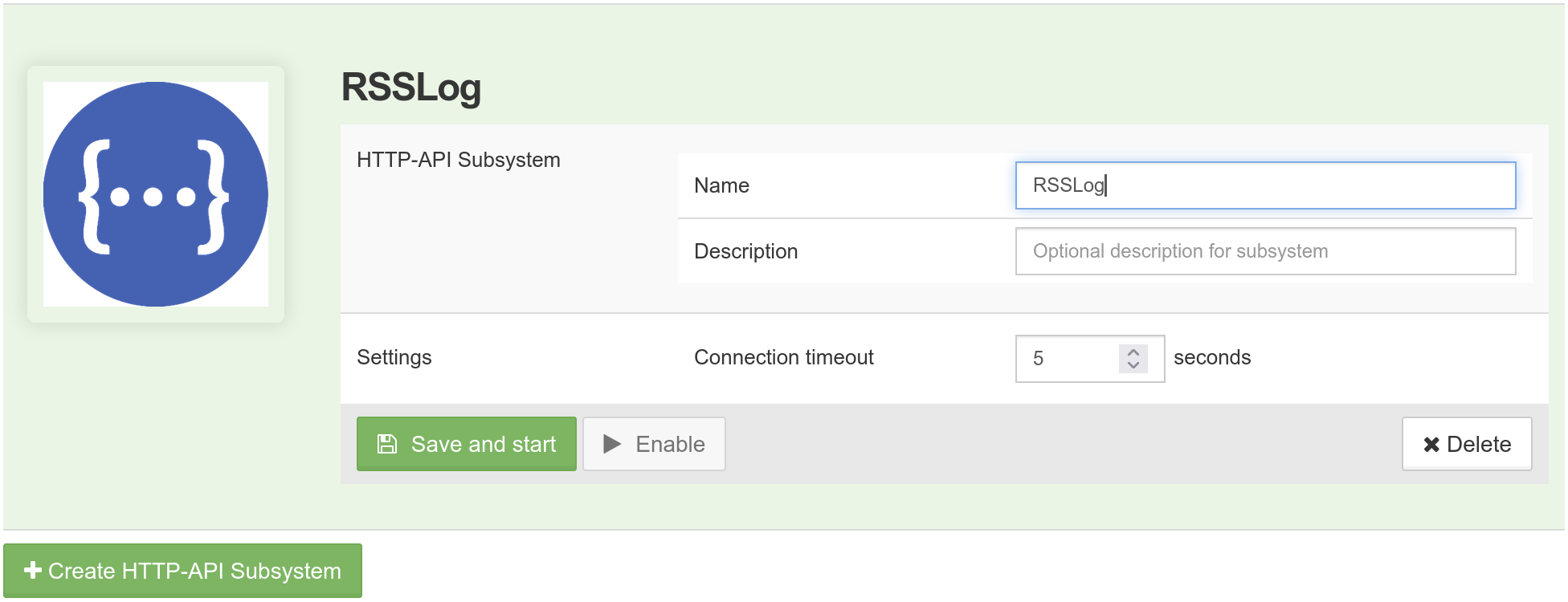

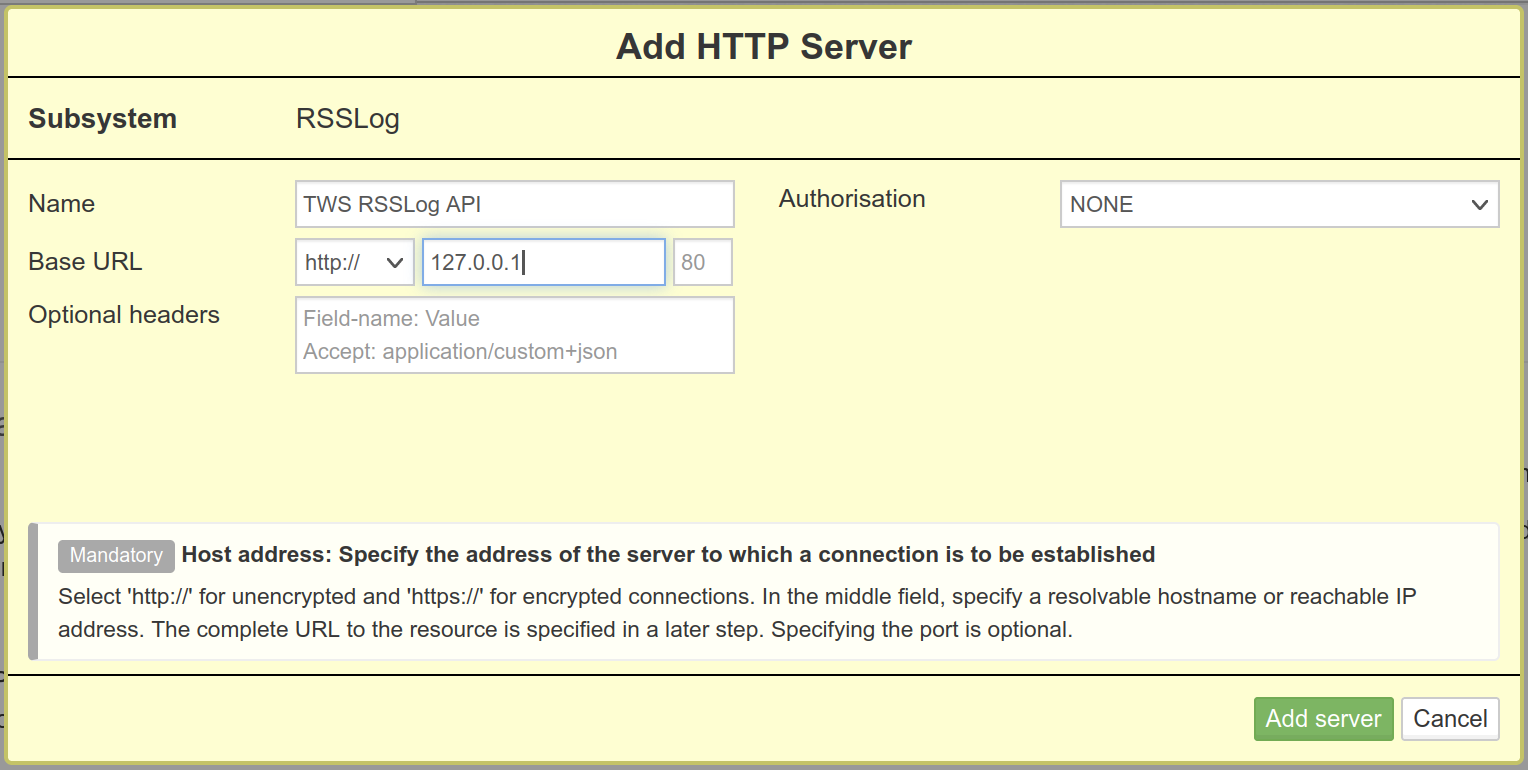

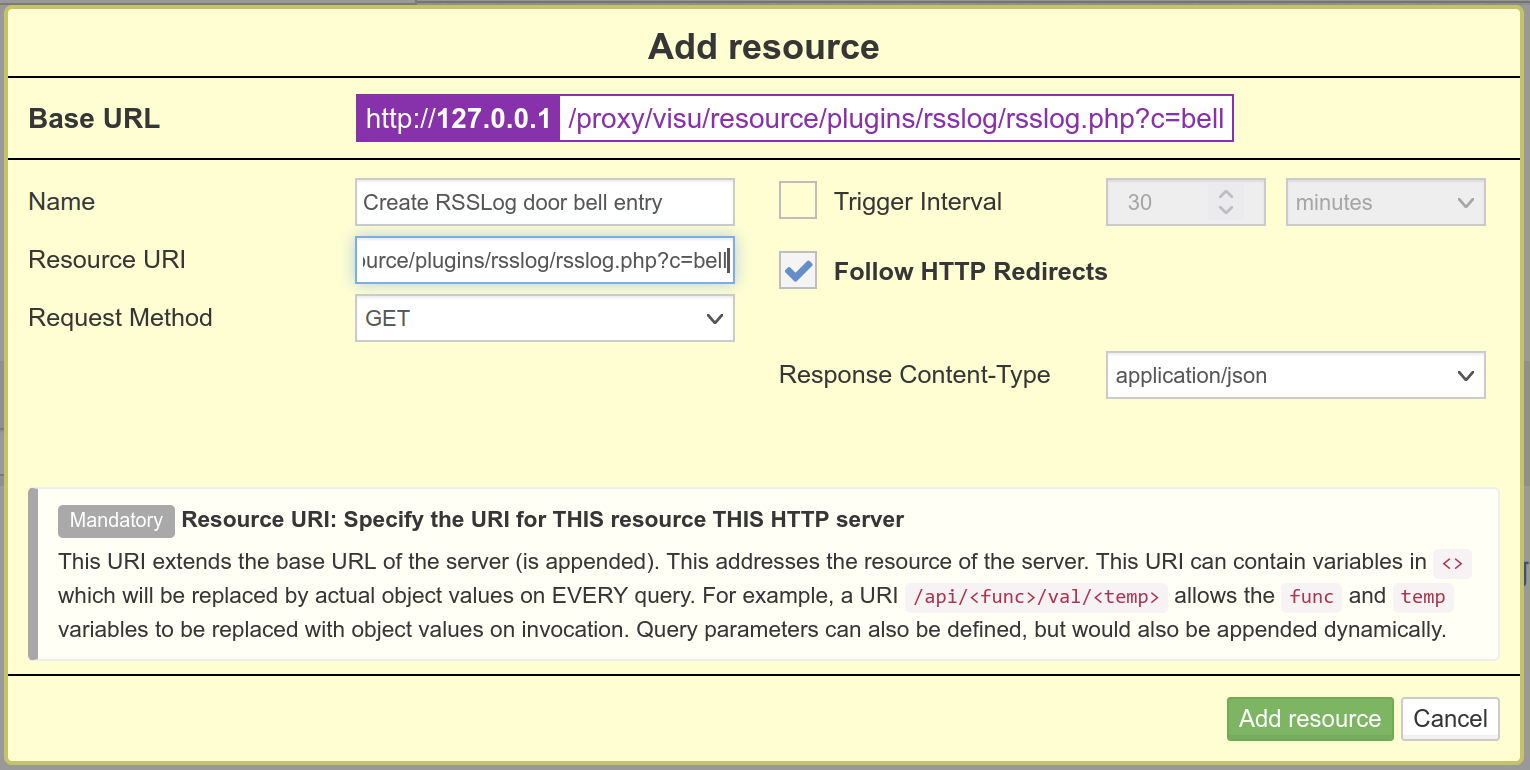

The Timberwolf server provides a HTTP-API to be able to send HTTP GET requests and interact with the RSSLog API.

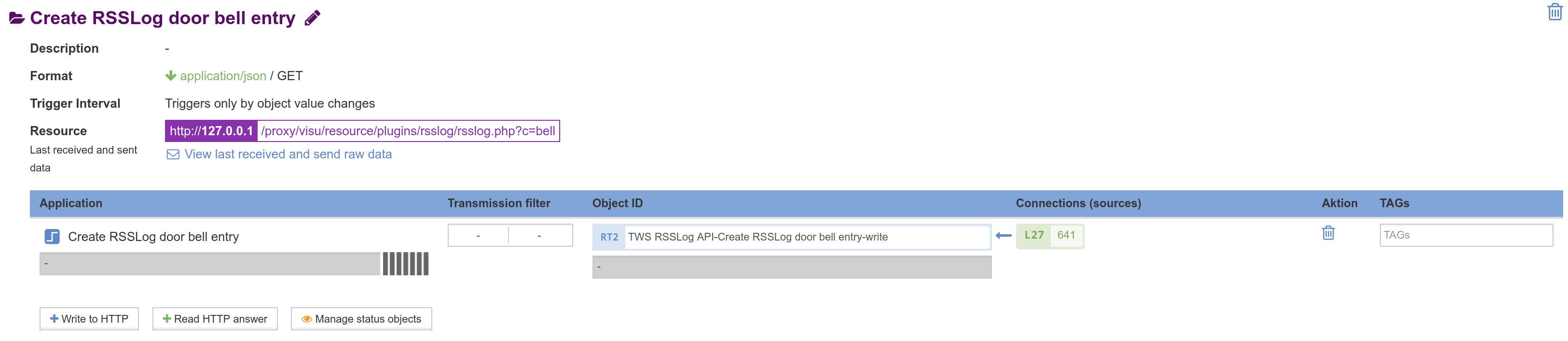

Static API call

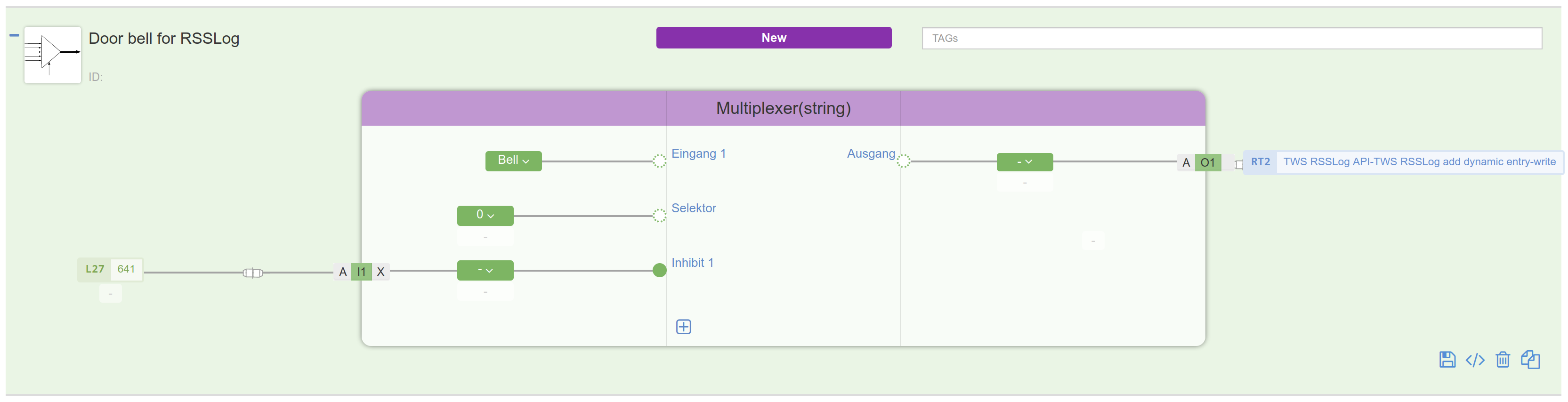

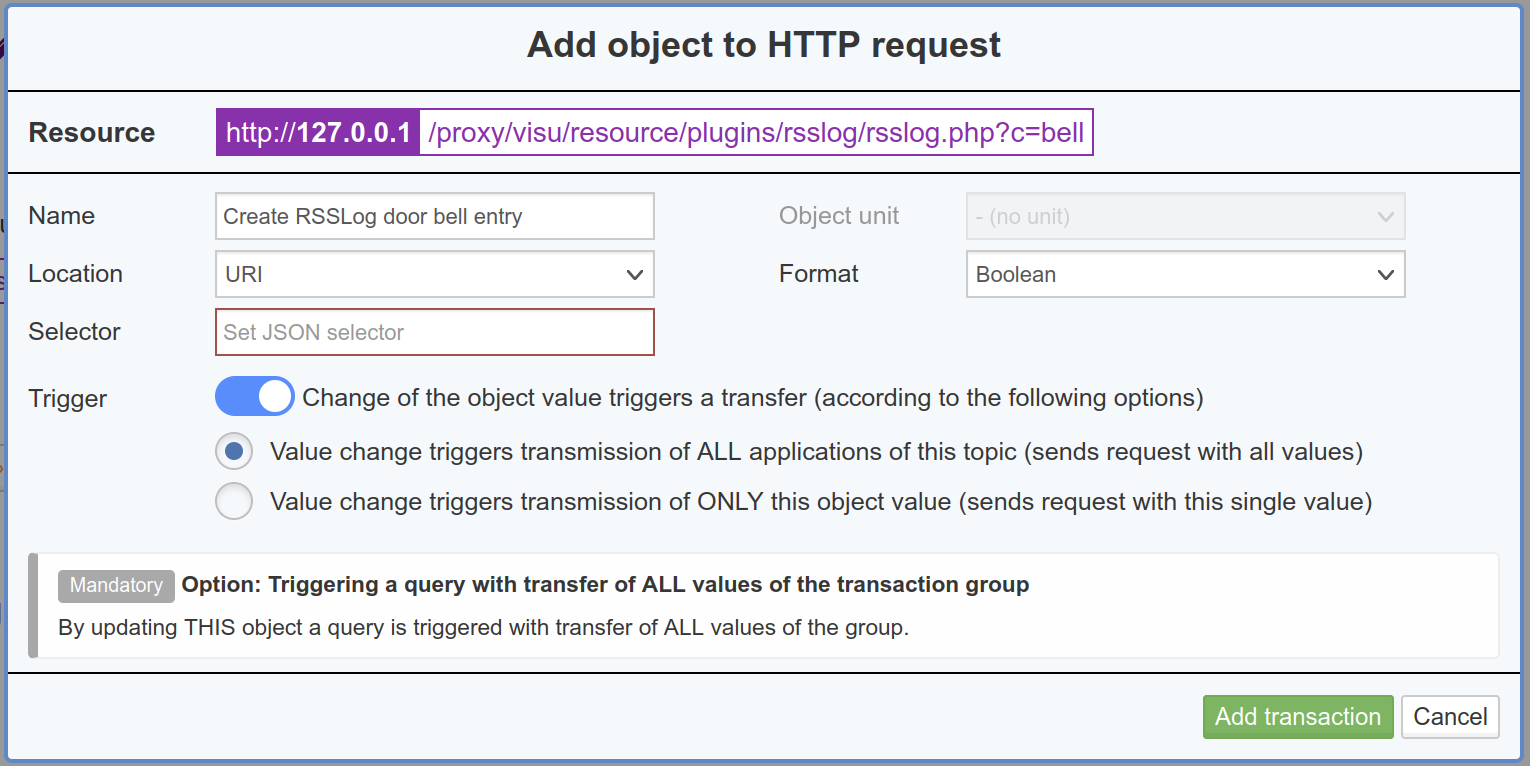

Most simple is a mechanism where each KNX message to a GA will create an API call.

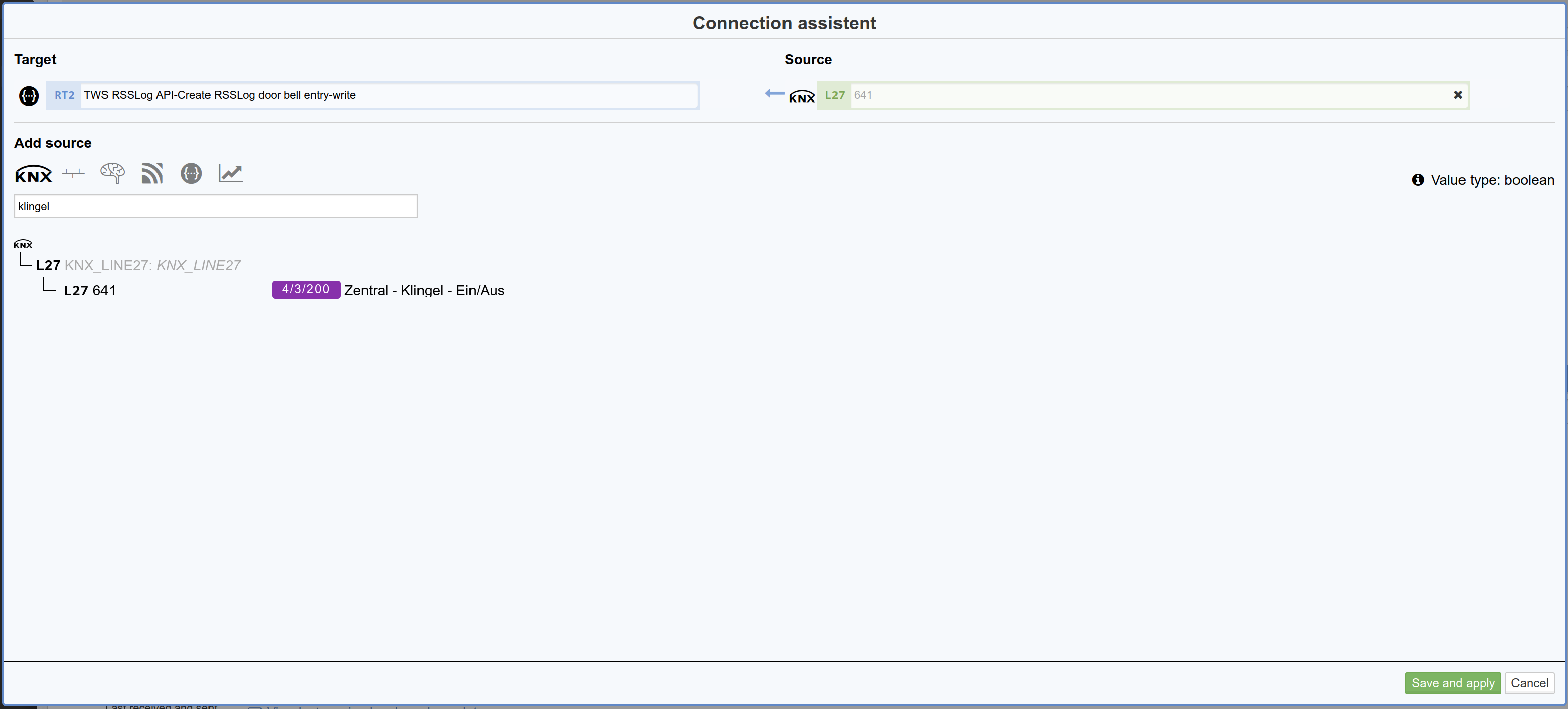

This example assumes that the GA 4/3/200 will send a On with each door bell ring. It is also assumed that the CometVisu is accessed by the proxy and the path /visu/.

First the HTTP-API subsystem must be created:

Then in the “Resource Manager” a new entry must be created by “Add new HTTP-API Server”:

For this server “Add resource” must be used to create the connection to the RSSLog api (“Follow HTTP Redirects” must be activated):

The link between the KNX subsystem and the HTTP-API call is done by selecting “Write to HTTP”. The setting for the “Trigger” must be adjusted:

Finalized will this by “Add” in the column “Connections (sources)”:

At the end it will look like:

Dynamic API call

The example will be more complex when the door bell sends a “On” for each ring but all the time a “Off” otherwise so that the data must be filtered first. In this example also the text should not be hard coded in the URL anymore but be dynamically passed from the logic.

The HTTP-API must be configured as described for the static call, but the text for the entry must be replaced by the place holder <title>:

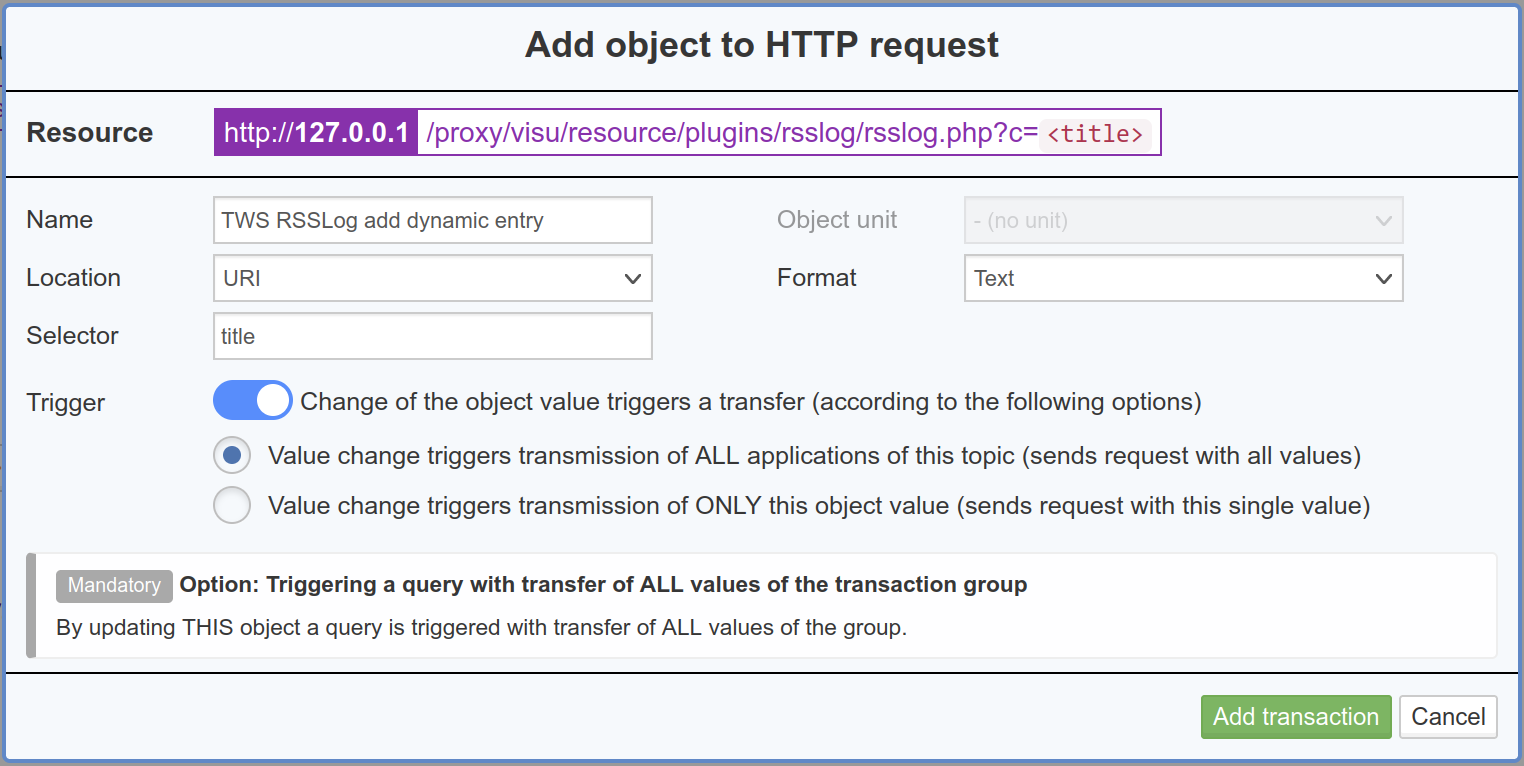

At this dialog the “Selector” must have the same palace holder and “Format” must be changed to “Text”:

At “Objects & Logic” in the “Logic Manager” by “Add Logic” a “Multiplexer(string)” must be added. The “Eingang 1” must be changed at “Function: Parameter” and the “Value” must be set to the desired text of the entry, in this case bell. At the “Selektor” the “Function: Parameter” must be changed to the value 0 . By + a “Inhibit” input must be created. This must be connected to the KNX object of the door bell and the input must be inverted (click on the dotted circle so that it is displayed filled). The Inhibit input as well as the “Ausgang” must be set to “A” for “Always” and the output be connected with the object of the HTTP-API:

Note

The text for the entry will be included in the URL directly, i.e. the text must follow the rules of an URL and thus be “escaped”. For example space characters must be replaced by %20.

Footnotes

[1]

In the simple view some things might be not visible. The expert view will show all entries.
