The ColorChooser widget

Author: Christian Mayer

Available since: 2012

Description

The ColorChooser let you select and display a color, e.g. for lighting effects. It supports a RGB light source with red, green and blue light components as well as a RGBW light source that also has a white channel.

The ColorChooser

<colorchooser controls="LCh-box;T:2500-15000;Y">
  <layout colspan="6" rowspan="6"/>
  <label>ColorChooser</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Simple mode

For most use cases the simple mode will be sufficient. It is optimized for a simple configuration by ignoring a perfect color consistency between lighting and display.

Widget components: slider

The ColorChooser offers different possibilities and combinations for selecting and displaying of a color. There are sliders for a direct control of a color channel, but also some for a indirect modification of a channel by representing a part of a color in the way a human is experiencing it.

RGB-r	red channel - direct control of RGB-lighting
RGB-g	green channel - direct control of RGB-lighting
RGB-b	blue channel - direct control of RGB-lighting
RGBW-r	red channel - direct control of RGBW-lighting
RGBW-g	green channel - direct control of RGBW-lighting
RGBW-b	blue channel - direct control of RGBW-lighting
RGBW-w	white channel - direct control of RGBW-lighting
h	hue of the HSV-color space, indirect control
s	saturation of the HSV-color space, indirect control
v	value, the brightness of the HSV-color space, indirect control
T	color temperature of white, indirect control
Y	brightness of the xyY-color space, indirect control
LCh-L	lightness of the L*C*h° CIE color space, indirect control
LCh-C	chroma of the L*C*h° CIE color space, indirect control
LCh-h	hue of the L*C*h° CIE color space, indirect control

The slider for the color temperature is special as it controls the hue als well as the saturation at the same time, so that a given color temperature of white will be set. When you also want to control the brightness it is recommended to use Y for that.

It is possible to configure the color temperature range that is used for the T slider by stating it separated by a colon. E.g. T:2000-10000 would create a slider going from 2000 Kelvin to 10000 Kelvin.

Example: RGB slider

ColorChooser, RGB slider

<colorchooser controls="RGB-r;RGB-g;RGB-b">
  <layout colspan="6" rowspan="4"/>
  <label>ColorChooser RGB slider</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Example: RGBW slider

ColorChooser, RGBW slider

<colorchooser controls="RGBW-r;RGBW-g;RGBW-b;RGBW-w">
  <layout colspan="6" rowspan="4"/>
  <label>ColorChooser RGBW slider</label>
  <address transform="DPT:5.001" mode="readwrite" variant="RGBW-r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="RGBW-g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="RGBW-b">1/2/61</address>
  <address transform="DPT:5.001" mode="readwrite" variant="RGBW-w">1/2/62</address>
</colorchooser>

Example: HSV slider

ColorChooser, HSV slider

<colorchooser controls="h;s;v">
  <layout colspan="6" rowspan="4"/>
  <label>ColorChooser HSV slider</label>
  <address transform="DPT:5.001" mode="readwrite" variant="h">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="s">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="v">1/2/61</address>
</colorchooser>

Example: color temperature and brightness slider

ColorChooser, color temperature and brightness slider

<colorchooser controls="T:2000-10000;Y">
  <layout colspan="6" rowspan="3"/>
  <label>ColorChooser T and Y slider</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Example: LCh slider

ColorChooser, LCh slider

<colorchooser controls="LCh-L;LCh-C;LCh-h">
  <layout colspan="6" rowspan="4"/>
  <label>ColorChooser LCh slider</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Widget components: color selection wheel

There are also combined, more complex interactions possible:

box	Color selection wheel with quadratic brightness and saturation selector, HSV color space
triangle	Color selection wheel with triangular brightness and saturation selector, HSV color space
LCh-box	Color selection wheel with quadratic brightness and saturation selector, L*C*h° CIE color space
LCh-triangle	Color selection wheel with triangular brightness and saturation selector, L*C*h° CIE color space

Example: combined chooser box

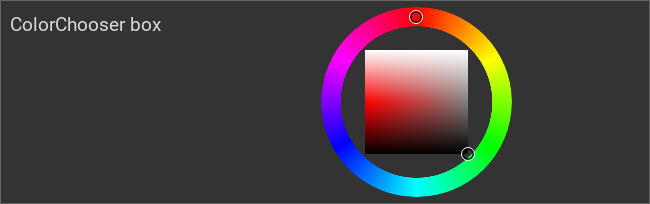

ColorChooser, combined chooser: box

<colorchooser controls="box">
  <layout colspan="6" rowspan="4"/>
  <label>ColorChooser box</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Example: combined chooser triangle

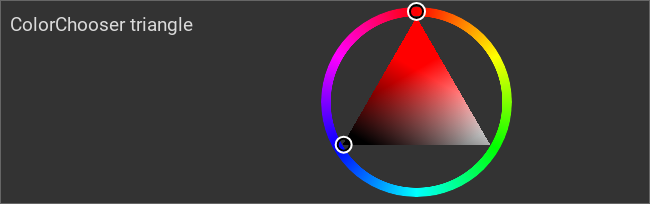

ColorChooser, combined chooser: triangle

<colorchooser controls="triangle">
  <layout colspan="6" rowspan="4"/>
  <label>ColorChooser triangle</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Example: combined chooser LCh-box

ColorChooser, combined chooser: LCh-box

<colorchooser controls="LCh-box">
  <layout colspan="6" rowspan="4"/>
  <label>ColorChooser LCh-box</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Example: combined chooser LCh-triangle

ColorChooser, combined chooser: LCh-triangle

<colorchooser controls="LCh-triangle">
  <layout colspan="6" rowspan="4"/>
  <label>ColorChooser LCh-triangle</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Note

In the simple mode it is recommended to use the color selection wheel in the HSV color space. In the professional mode, when the chromaticity coordinates are configured, the L*C*h° color space should be used for best color alignment.

Dim curves

The eye doesn’t measure brightness in a linear fashion but in a logarithmic way to be able to see at a dark night as well as during high noon. Different lighting systems, like DALI, take that into account and thus use a non linear dim curve, so that the brightness of the light has a better match to the selected dim value. Although this is a desirable mechanism it prevents the mixing of different light colors as this requires a linear dim curve.

Using the attributes r_curve, g_curve, b_curve and w_curve it is possible to configure the dim curve used by the lighting system and compensate it for color mixing. Apart from defining a look up table (intended for the use at the professional mode) the keywords linear, exponential and logarithmic allow a simple use of the most common types of curve.

Note

Configuring a dim curve is only required when the communication is done in raw color components (r, g, b and perhaps w). Using a complete color in HSV or - in the best case - as xyY color a dim curve isn’t necessary.

The correct value is stated in the documentation of the lighting system, but it is important to consider the lights, the drivers and the bus gateways, as each component might use a non linear behavior.

It is possible to do a quick check whether the selected curve is right or way off. For that the red channel has to be set to 100%, the green to 50% and the blue to 0% (when you are also using a white channel is must also be 0%). When the dim curves are set correctly the light color should now be a saturated orange.

When the light color is different and no curve has been configured this table shows the correct curve to use for compensation:

target color	real color	dim curve to use for compensation
——	——	logarithmic
——	——	linear
——	——	exponential

In most cases it is sufficient to select the correct dim curve for a good consistent color. But when you select a brightness of 100% and a saturation of 0% and have a color tint and not a neutral white you can use r_strength, g_strength and b_strength to correct the color. This is also possible with a RGBW light source but the judgement by eye will be quite demanding. In this case it’s better suited to use a measurement device as described in the professional mode.

Professional mode

For professional applications like architecture, art galleries or yachting the simple mode can be easily upgraded to the professional mode where the color chooser can be used for true color selecting.

Note

Best results require a calibrated display. As, on purpose, only the sRGB color space is used for showing the widget also uncalibrated devices (like a smart phone or a tablet computer) should still have acceptable performance in most cases. Although only the sRGB color space is used the ColorChooser does allow the selection of all colors that the lighting system does allow.

The difference between the professional and the simple mode is that the colorimetric locus and the dim behaviour of the channels of the light source are configured.

Best results will be reached by measuring the colorimetric locus of the red, green, blue and (when available) white channel by using a spectral photometer and stating the measured x and y coordinates of the CIE xyY color space as well as the maximal brightness in the config file. This measurement can also provide a look up table for the dim curve. Due to aging of the light source those values should be regularly remeasured, just like any display calibration. The frequency of this measurement depends on the required color accuracy.

It is still possible to get good results without a measurement device when the data sheet of the used light source is available. When no values for the x and y coordinates are given but instead the wave length of the color it can be used alternatively. Although this would work only for a monochromatic light source like a laser, the widely used RGB-LEDs can still be assumed to be nearly monochromatic. For the white channel it is possible to use the color temperature instead of the xy coordinates. A deviation from the black body curve can’t be stated, in such a case the x and y coordinates must be used.

The configured brightness doesn’t need to follow a specific physical unit (like lumen or lumen/meter for LED stripes) as the ColorChooser is using only relative values.

For a best match between the displayed color and that from the light the widget element should not be used in the HSV but in the L*C*h° mode. The bus communication should use the xy, xyY or L*a*B* color space as then the conversation to control the light source is happening close to it reducing any errors in between. A communication in the HSV color space might still work. A direct control by RGB or RGBW values would require an accurate configured dim curve.

Note

The ColorChooser is using internally the CIE xyY color space. For the conversion in the L*a*b* and the L*C*h° color space it is using the D65 light with a 10° standard observer.

Example of a ColorChooser for the OSRAM LINEARlight FLEX Colormix RGBW LED stripe “LF700RGBW-G1-830-06” with the datasheet data and a control via DALI:

<colorchooser
    r_wavelength="622" r_strength="80" r_curve="logarithmic"
    g_wavelength="534" g_strength="196" g_curve="logarithmic"
    b_wavelength="468" b_strength="21" b_curve="logarithmic"
    w_x="0.4290" w_y="0.4010" w_strength="400" w_curve="logarithmic"
    controls="LCh-triangle">
  <layout rowspan="4" colspan="6"/>
  <label>LED Strip</label>
  <address transform="DPT:242.600" mode="read" variant="xyY">1/2/60</address>
  <address transform="DPT:242.600" mode="write" variant="xyY">1/2/61</address>
</colorchooser>

Warning

It is technically possible to use multiple address elements with different color space types like RGB and HSV. It is also technically possible to use RGB-R, RGB-G, RGB-B and at the same time RGB.

Although it might seem to work it can have unwanted side effects leading to the display of a wrong color, so it should be prevented and be considered a misconfiguration.

Note

It is recommended to use a bus communication where all color components are stated in the same data type (e.g. rgb instead of RGB-r, RGB-g and RGB-b). Otherwise it is possible that for short time periods after an external change of the color artefacts in the displayed or animated color are shown.

Note

When multiple ColorChooser are used for the same light (e.g. in one configuration or by opening the CometVisu in two browsers) it is possible that both will show a slightly different color. This happens when a color is selected that isn’t contained in the color space used on the bus communication. This happens most likely with a ColorChooser in LCh mode and RGB mode for communication.

Changing the communication to xyY mode will solve this issue.

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Pages and structure of CometVisu.

The behaviour and appearance of the Info widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ….. are mandatory, all the others are optional and be omitted.

Allowed attributes in the colorchooser-element

Element	Attribute
	Name	Content	Description
colorchooser	controls	string	List of controls to show (separated by semicolons)
	r_x	decimal	x coordinate of the red channel in the CIE xyY color space
	r_y	decimal	y coordinate of the red channel in the CIE xyY color space
	r_wavelength	decimal	Wavelength in nanometers of the red channel
	r_strength	decimal	Maximal strength of the red channel
	r_curve	string	Dim curve of the red channel
	r_scale	decimal	Scaling of the dim curve of the red channel
	g_x	decimal	x coordinate of the green channel in the CIE xyY color space
	g_y	decimal	y coordinate of the green channel in the CIE xyY color space
	g_wavelength	decimal	Wavelength in nanometers of the green channel
	g_strength	decimal	Maximal strength of the green channel
	g_curve	string	Dim curve of the green channel
	g_scale	decimal	Scaling of the dim curve of the green channel
	b_x	decimal	x coordinate of the blue channel in the CIE xyY color space
	b_y	decimal	y coordinate of the blue channel in the CIE xyY color space
	b_wavelength	decimal	Wavelength in nanometers of the blue channel
	b_strength	decimal	Maximal strength of the blue channel
	b_curve	string	Dim curve of the blue channel
	b_scale	decimal	Scaling of the dim curve of the blue channel
	w_x	decimal	x coordinate of the white channel in the CIE xyY color space
	w_y	decimal	y coordinate of the white channel in the CIE xyY color space
	w_strength	decimal	Maximal strength of the white channel
	w_curve	string	Dim curve of the white channel
	w_scale	decimal	Scaling of the dim curve of the white channel
	send_on_finish	true or false	Send only when the slider is released.

Attributes in the editor (simple view) [1]

Allowed child-elements and their attributes

Element	Attribute
Structure	Name	Content	Description
colorchooser layout	colspan	decimal	Amount of columns this widget should be wide.
	colspan-m	decimal	Overrules the amount of columns on a medium screen.
	colspan-s	decimal	Overrules the amount of columns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
colorchooser label icon	name	string	Name of the icon registration.
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string	Color of the icon in CSS notation (e.g. #1188FF).
	styling	string	Change the color of the displayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formatted by a user provided style sheet.
colorchooser label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
colorchooser address	transform	string	Transformation of the bus system value to be shown.
	mode	disable, read, write or readwrite	“disable” deactivates the communication, “read” will only fetch data from the backend, “write” will only write to it and an address with “readwrite” will be both, read from and written to.
	variant	string
	format-pos	decimal	Position for format string when multiple addresses are used.
	selector	string	Only MQTT: JSON selector
	qos	decimal	Only MQTT: QoS
	retain	true or false	Only MQTT: retain flag
	ignore-error	true or false	Only MQTT: ignore decode errors.
colorchooser address #text		string	The GA (like: 12/0/7) for KNX-backends, the item name for openHAB-backend or the MQTT topic

Elements in the editor

Important

When you need to address each color (red, green and blue) individually you need to add a group address with corresponding variant each. For OpenHAB Color Items or one of the combined KNX data types this does not hold, here it is e.g. possible to use a variant="rgb" instead.

Valid values for variant are:

RGB-r	Red channel of RGB lighting
RGB-g	Green channel of RGB lighting
RGB-b	Blue channel of RGB lighting
r	Shortcut for RGB-r
g	Shortcut for RGB-g
b	Shortcut for RGB-b
rgb	Combined data type of RGB lighting
RGBW-r	Red channel of RGBW lighting
RGBW-g	Green channel of RGBW lighting
RGBW-b	Blue channel of RGBW lighting
RGBW-w	White channel of RGBW lighting
rgbw	Combined data type of RGBW lighting
h	Hue channel of HSV controlled lighting
s	Saturation channel of HSV controlled lighting
v	Value channel of HSV controlled lighting
hsv	Combined data type of HSV controlled lighting
x	x channel of xyY controlled lighting
y	y channel of xyY controlled lighting
Y	Y channel of xyY controlled lighting
xy	Combined data type of xyY controlled lighting
xyY	Combined data type of xyY controlled lighting

Note

The variant used for communication doesn’t necessarily be similar to the used widget elements as defined by controls. It is valid to use a ColorChooser with a HSV control and RGB bus communication.

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Info widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

<colorchooser>
  <layout colspan="6" rowspan="4"/>
  <label>RGB kitchen</label>
  <address transform="DPT:5.001" mode="readwrite" variant="r">1/2/59</address>
  <address transform="DPT:5.001" mode="readwrite" variant="g">1/2/60</address>
  <address transform="DPT:5.001" mode="readwrite" variant="b">1/2/61</address>
</colorchooser>

Footnotes

[1]

The simple view might not show everything. To see all elements/attributes use the expert view.
