The WgPluginInfo widget¶

Available since version: 2012
Author: Christian Mayer

Description¶

Adds an dynamic field to the visu that shows live information from a WireGate plugin.

Note: The service helper from https://raw.githubusercontent.com/OpenAutomationProject/Wiregate/master/tools/wg-plugindb/wg-plugindb.php must be “installed” in the directory /var/www/ (i.e. the web root)

Settings¶

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Pages and structure of CometVisu.

The behaviour and appearance of the WgPluginInfo widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the WgPluginInfo-element¶

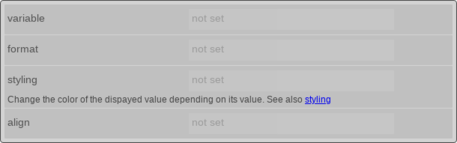

../../../_images/en_config_widgets_wgplugininfo_index_editor_attributes.png

Attributes in the editor (simple view) [1]

Allowed child-elements und their attributes¶

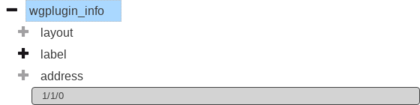

../../../_images/en_config_widgets_wgplugininfo_index_editor_elements.png

Elements in the editor

Examples¶

It is possible to manually edit the visu_config.xml and add an entry for the WgPluginInfo widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

Footnotes

[1]	The simple view might not show everything. To see all elements/attributes use the expert view.
