The Info widget

Available since version: 0.8.0 (2012)

Author: Christian Mayer

Description

Adds a dynamic field to the visu that can represent values from the BUS (e.g. 14-byte text or temperature measurements).

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Pages and structure of CometVisu.

The behaviour and appearance of the Info widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the Info-element

Element	Attribute
	Name	Content	Description
info	format	string
	styling	string	Change the color of the dispayed value depending on its value. See also Styling
	mapping	string	Map the bus value to a different value, text or symbol for displaying. See also Mapping
	align	left, right or center
	flavour	string	Selection of a display variant. See also Flavour.
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.

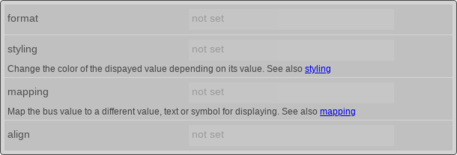

Attributes in the editor (simple view) [1]

Allowed child-elements und their attributes

Element	Attribute
Structure	Name	Content	Description
info layout	colspan	decimal	Amount of coloumns this widget sould be wide.
	colspan-m	decimal	Overrules the amount of coloumns on a medium screen.
	colspan-s	decimal	Overrules the amount of coloumns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
info label icon	name	string
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string
	styling	string	Change the color of the dispayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.
info label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
info address	transform	string
	mode	disable, read, write or readwrite
	variant	string
	format-pos	decimal
info address #text		string	The GA (like: 12/0/7) for KNX-backends or the item name for openHAB-backend

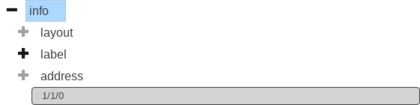

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Info widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

<info format="%.1f &#xB0;C">
  <label>outside temperature</label>
  <address transform="DPT:9.001">0/0/0</address>
</info>

Footnotes

[1]	The simple view might not show everything. To see all elements/attributes use the expert view.
