The Switch widget

Available since version: 0.8.0 (2012)

Author: Christian Mayer

Description

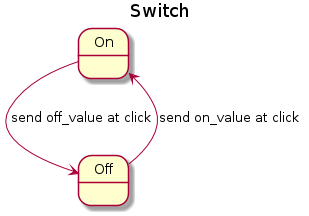

The switch widget shows two states (e.g. ON and OFF) and can toggle between them.

With a mapping it is possible to replace the 0/1 in the switch with custom texts or icons (e.g. On/Off instead of 0/1 or icons for window contacs, alarms, lights, etc.). The CometVisu comes with an extensive collecton of icons for many different usecases. Further information can be found at the mapping documentation.

and / or by the use of a styling it is possible to set colors (e.g. On in red and Off in green)

Of course it is possible to combine both at the same time:

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Pages and structure of CometVisu.

The behaviour and appearance of the Switch widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the Switch-element

Element	Attribute
	Name	Content	Description
switch	styling	string	Change the color of the dispayed value depending on its value. See also Styling
	mapping	string	Map the bus value to a different value, text or symbol for displaying. See also Mapping
	on_value	string	Value of the “on” state. Defaults to “1”.
	off_value	string	Value of the “off” state. Defaults to “0”.
	align	left, right or center
	flavour	string	Selection of a display variant. See also Flavour.
	bind_click_to_widget	true or false	use the whole widget area to react on click events
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.

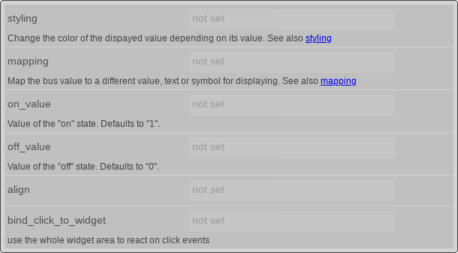

Attributes in the editor (simple view) [1]

Allowed child-elements und their attributes

Element	Attribute
Structure	Name	Content	Description
switch layout	colspan	decimal	Amount of coloumns this widget sould be wide.
	colspan-m	decimal	Overrules the amount of coloumns on a medium screen.
	colspan-s	decimal	Overrules the amount of coloumns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
switch label icon	name	string
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string
	styling	string	Change the color of the dispayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.
switch label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
switch address	transform	string
	mode	disable, read, write or readwrite
	variant	string
	format-pos	decimal
switch address #text		string	The GA (like: 12/0/7) for KNX-backends or the item name for openHAB-backend

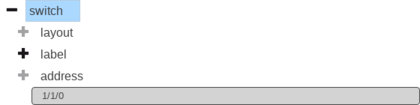

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Switch widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

...
<meta>
 <mappings>
   <mapping name="OnOff">
     <entry value="0">O</entry>
     <entry value="1">I</entry>
   </mapping>
 </mappings>
 <stylings>
   <styling name="GreyGreen">
     <entry value="0">grey</entry>
     <entry value="1">green</entry>
   </styling>
 </stylings>
</meta>
...
<switch mapping="OnOff" styling="GreyGreen">
  <layout colspan="3"/>
  <label>Switch</label>
  <address transform="DPT:1.001" mode="readwrite">0/0/0</address>
</switch>

Footnotes

[1]	The simple view might not show everything. To see all elements/attributes use the expert view.
