The MultiTrigger widget

Available since version: 2012

Author: Christian Mayer

Description

Adds a widget with 4 buttons to the visu. Thus, e.g. change the operating mode of the heating system (Comfort -> Night -> Absent -> Frost protection) or create scene functions.

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: Pages and structure of CometVisu.

The behaviour and appearance of the MultiTrigger widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the MultiTrigger-element

Element	Attribute
	Name	Content	Description
multitrigger	showstatus	string	Defines if the current status is shown on the buttons.
	button1label	string	Defines the label for the top left button.
	button1value	string	Defines the value which will be sent when pressing the top left button.
	button2label	string	Defines the label for the top right button.
	button2value	string	Defines the value which will be sent when pressing the top right button.
	button3label	string	Defines the label for the bottom left button.
	button3value	string	Defines the value which will be sent when pressing the bottom left button.
	button4label	string	Defines the label for the bottom right button.
	button4value	string	Defines the value which will be sent when pressing the bottom right button.
	flavour	string	Selection of a display variant. See also Flavour.
	mapping	string	Map the bus value to a different value, text or symbol for displaying. See also Mapping
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.

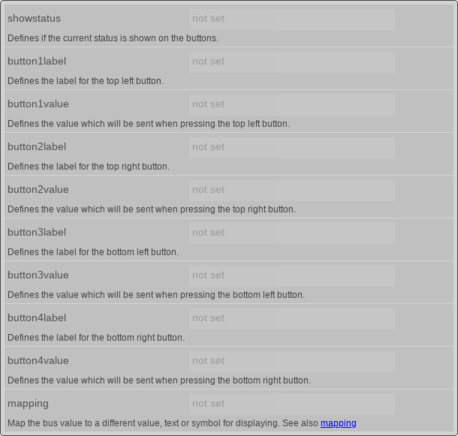

Attributes in the editor (simple view) [1]

Allowed child-elements und their attributes

Element	Attribute
Structure	Name	Content	Description
multitrigger layout	colspan	decimal	Amount of coloumns this widget sould be wide.
	colspan-m	decimal	Overrules the amount of coloumns on a medium screen.
	colspan-s	decimal	Overrules the amount of coloumns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	x-s	string	Horizontal position of the widget for 2D pages on a small screen.
	x-m	string	Horizontal position of the widget for 2D pages on a medium screen.
	y	string	Vertical position of the widget for 2D pages.
	y-s	string	Vertical position of the widget for 2D pages on a small screen.
	y-m	string	Vertical position of the widget for 2D pages on a medium screen.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.
	width-s	string	Width for the widget for 2D pages on a small screen.
	width-m	string	Width for the widget for 2D pages on a medium screen.
	scale	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages (default: true).
	scale-s	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a small screen (default: true).
	scale-m	true or false	Enable/Disable scaling layout values relative to backdrop on 2d pages on a medium screen (default: true).

Element	Attribute
Structure	Name	Content	Description
multitrigger label icon	name	string
	type	string
	flavour	string	Selection of a display variant. See also Flavour.
	color	string
	styling	string	Change the color of the dispayed value depending on its value. See also Styling
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.
multitrigger label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
multitrigger address	transform	string
	mode	disable, read, write or readwrite
	variant	string
	format-pos	decimal
multitrigger address #text		string	The GA (like: 12/0/7) for KNX-backends or the item name for openHAB-backend

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the MultiTrigger widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

Footnotes

[1]	The simple view might not show everything. To see all elements/attributes use the expert view.
