CometVisu von swiss (Metal)

This is where swiss’ visually productive Visu is presented.

Design: Metal

Plugins: colorchooser, rsslog, strftime, diagram

Config: visu_config_metal_swiss.xml

Live-Demo: Live-Demo

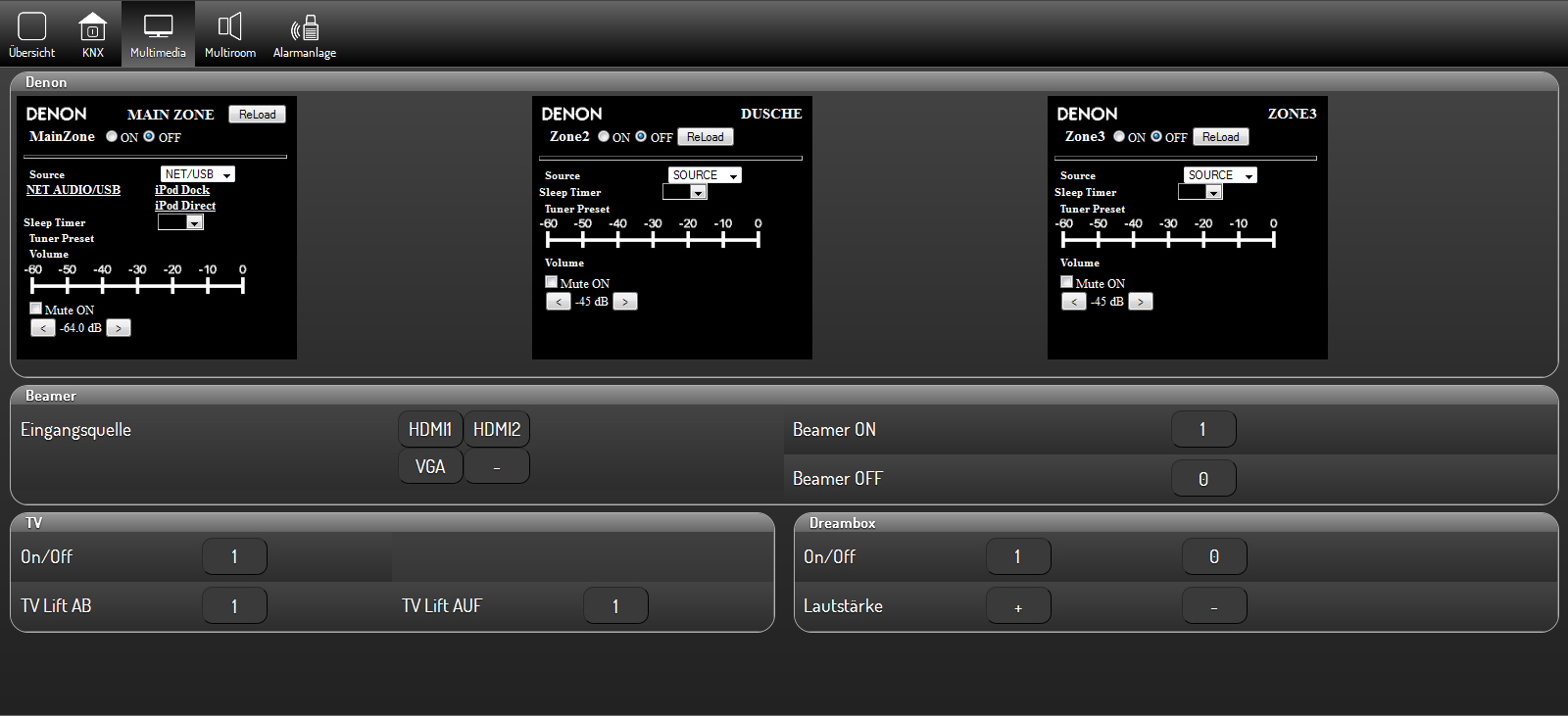

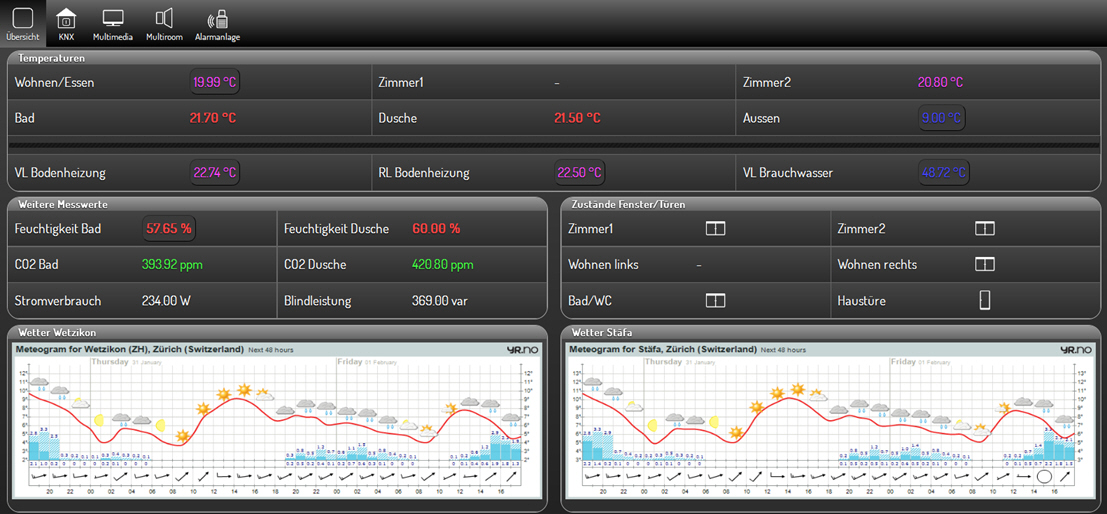

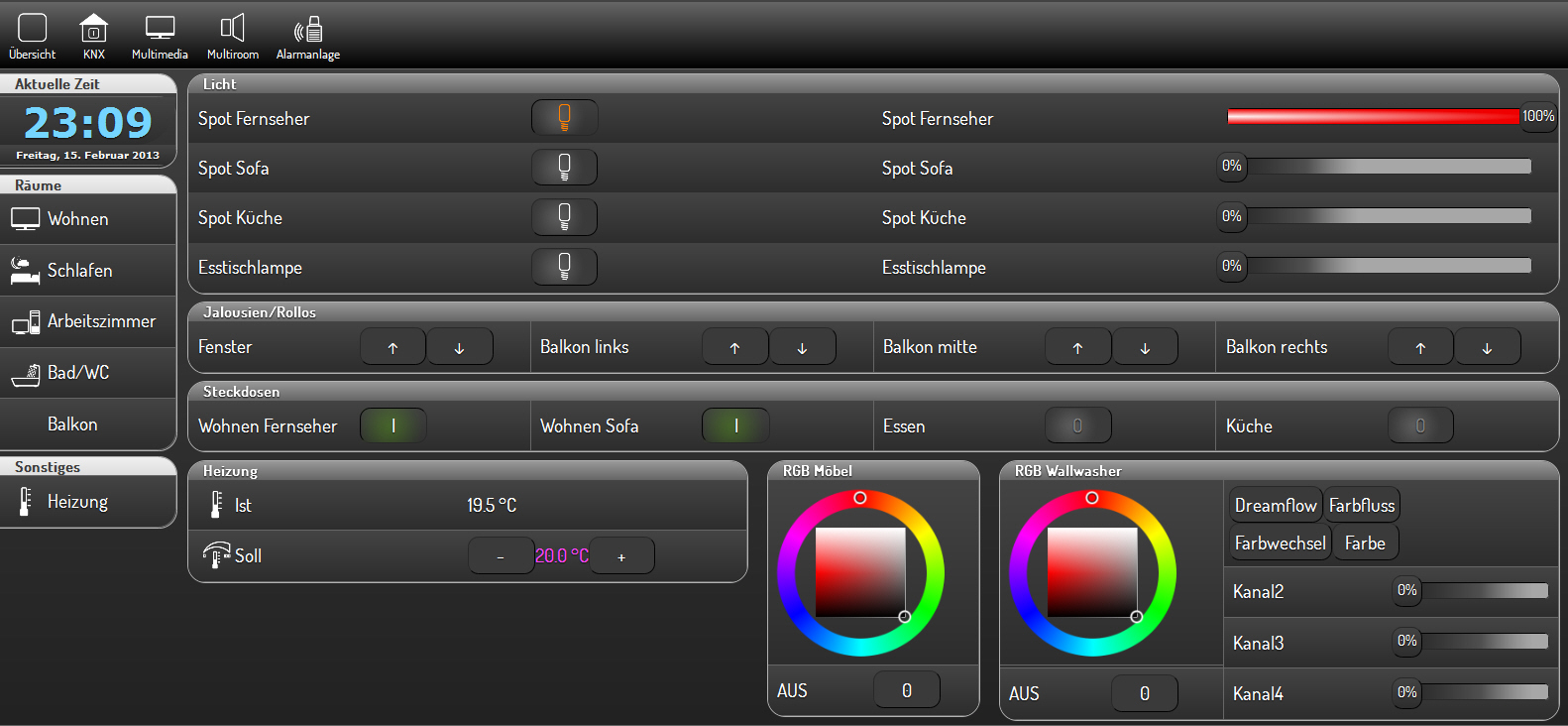

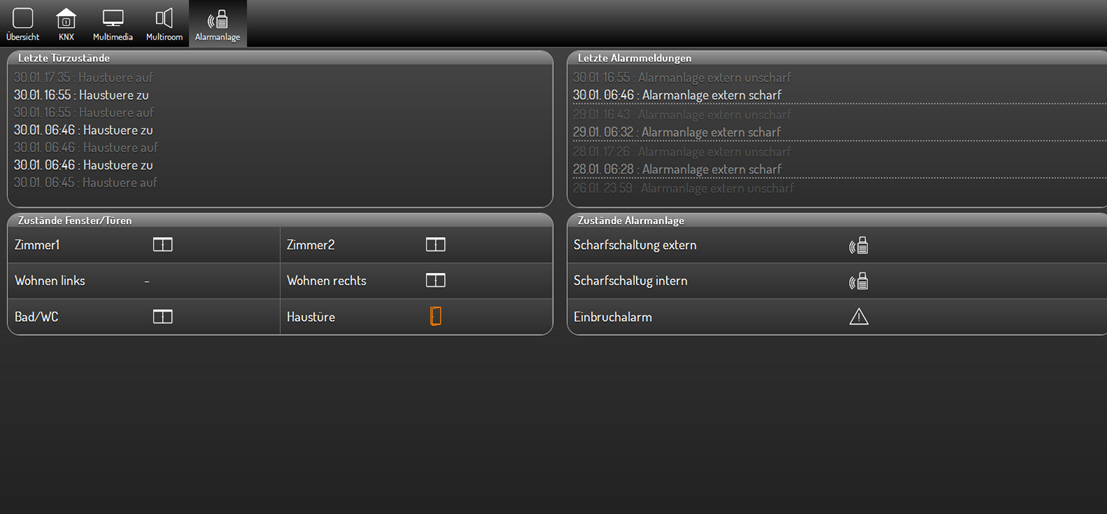

Screenshots

Screenshot Metal	Screenshot Metal	Screenshot Metal
Screenshot Metal	Screenshot Metal

The highlights at a glance

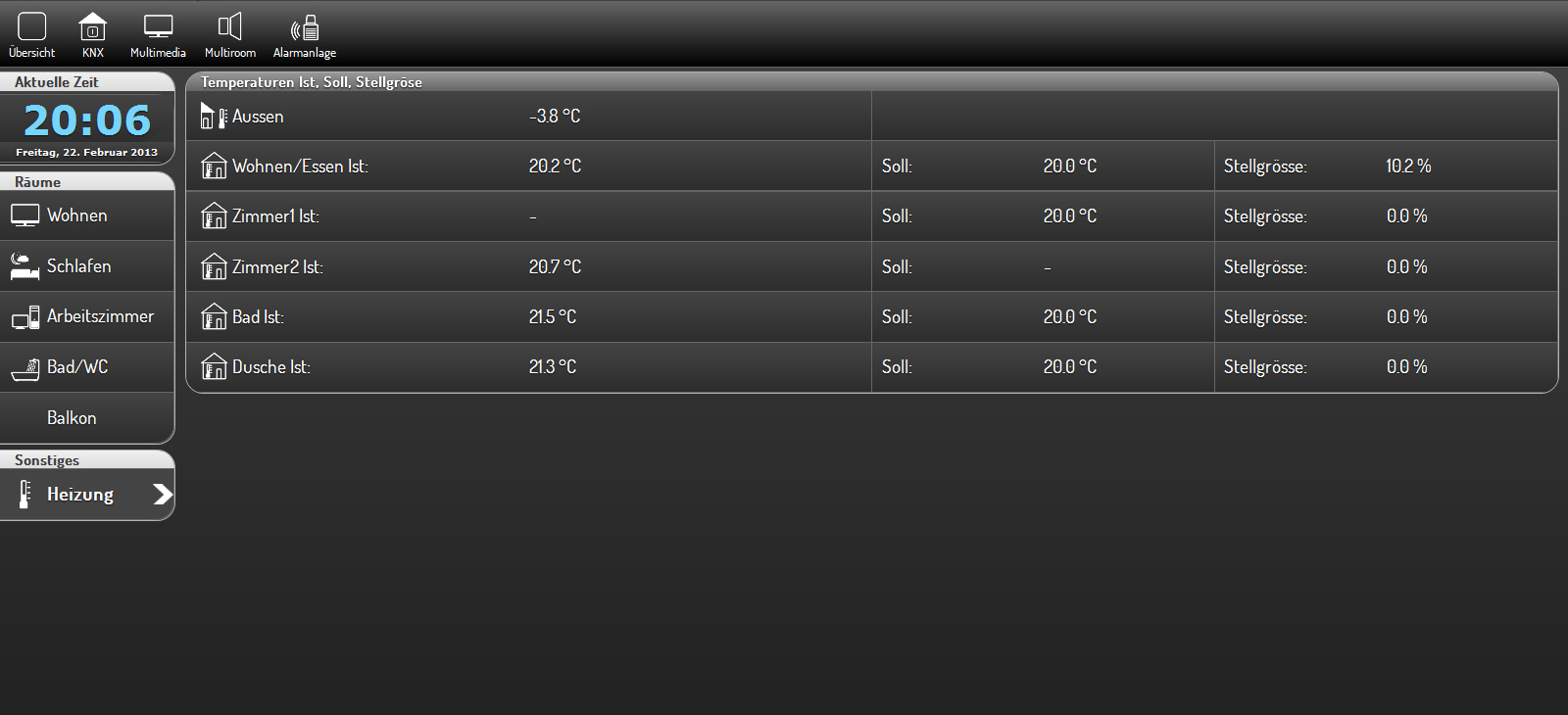

Time display in the Navbar

Screenshot Time/Date

Hint

For the time display the strftime plugin is used. To activate it must be added in the meta area of the config under plugins. The class attribute only appears in the editor if the complex mode has been activated.

The time display (inspired by netsrac) was as follows built-in:

In the Navbar, a Group widget was inserted at the top of the page with the name “Current Time”. Within this Group is another Group widget with the attribute nowidget=”true”. Then, from top to bottom, a strftime, a break followed by another strftime widget were inserted.

The upper strftime widget which displays the time has the following parameters:

lang="de"
format="%H:%M"
class="timebig"

The lower strftime indicating the date has the following parameters:

lang="de"
format="%A, %d. %B %Y"
class="timedate"

In config.xml, this section looks like this:

<group name="Actual time">
   <layout colspan="12"/>
   <group nowidget="true">
     <layout colspan="12"/>
     <strftime lang="de" format="%H:%M" class="timebig">
       <layout colspan="12"/>
     </strftime>
     <strftime lang="de" format="%A, %d. %B %Y" class="timedate">
       <layout colspan="12"/>
     </strftime>
   </group>
 </group>

For formatting (color, font size and font) the following css rules must be added to the visu:

.custom_timebig {
    padding: 0;
    margin: 0;
    color: #75d5ff;
    min-height: 0mm;
    line-height: 8mm;
    font: bold 12mm "Lucida Grande", Lucida, Verdana, sans-serif;
}

.custom_timebig > div.strftime_value {
    text-align: center;
    line-height: 14mm;
}

.custom_timedate {
    padding: 0;
    margin: 0;
    min-height: 0mm;
    line-height: 8mm;
    font: bold 3mm "Lucida Grande", Lucida, Verdana, sans-serif;
}

.custom_timedate > div.strftime_value {
        text-align: center;
}

Howto include custom css rules is described in chapter Customize Cometvisu.
