The Info widget

Available since version: 0.8.0 (2012)

Author: Christian Mayer

Description

Todo

add widget description

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: visu-config-details.

The behaviour and appearance of the Info widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the Info-element

Element	Attribute
	Name	Content	Description
info	format	string
	styling	string
	mapping	string	Map the bus value to a different value for displaying.
	align	left, right or center
	flavour	string	Selection of a display variant. See also :ref:’flavour’.
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.

Allowed child-elements und their attributes

Element	Attribute
Structure	Name	Content	Description
info layout	colspan	decimal	Amount of coloumns this widget sould be wide.
	colspan-m	decimal	Overrules the amount of coloumns on a medium screen.
	colspan-s	decimal	Overrules the amount of coloumns on a small screen.
	rowspan	decimal	Amount of rows this widget should be high.
	x	string	Horizontal position of the widget for 2D pages.
	y	string	Vertical position of the widget for 2D pages.
	z	string	Reserved for future use.
	width	string	Width for the widget for 2D pages.

Element	Attribute
Structure	Name	Content	Description
info label icon	name	string
	type	string
	flavour	string	Selection of a display variant. See also :ref:’flavour’.
	color	string
	styling	string
	class	string	Add this value to the CSS class so that it can be formated by a user provided style sheet.
info label #text		string	Text to display a label for the widget.

Element	Attribute
Structure	Name	Content	Description
info address	transform	string
	mode	disable, read, write or readwrite
	variant	string
	format-pos	decimal
info address #text		string	The GA (like: 12/0/7) for KNX-backends or the item name for openHAB-backend

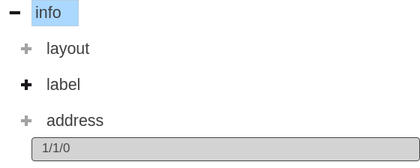

Elements in the editor

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Info widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

<info format="%.1f &#xB0;C">
  <label>outside temperature</label>
  <address transform="DPT:9.001">0/0/0</address>
</info>
