The Web widget

Available since version: 2012
Author: Christian Mayer

Description

Adds an area to the visu, where external websites can be displayed.

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: visu-config-details.

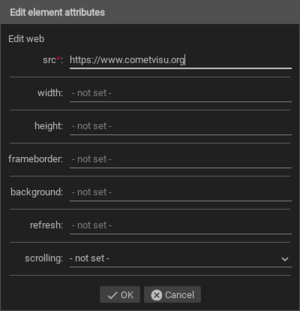

The behaviour and appearance of the Web widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the Web-element

Element Attribute
  Name Content Description
web src URI
width dimenstion (number+unit)
height dimenstion (number+unit)
frameborder string
background string
refresh decimal
scrolling yes, no or auto
ga address
flavour string Selection of a display variant. See also flavour.

Allowed child-elements und their attributes

Element Attribute
Structure Name Content Description
web
  • layout
colspan decimal Amount of coloumns this widget sould be wide.
colspan-m decimal Overrules the amount of coloumns on a medium screen.
colspan-s decimal Overrules the amount of coloumns on a small screen.
rowspan decimal Amount of rows this widget should be high.
x string Horizontal position of the widget for 2D pages.
y string Vertical position of the widget for 2D pages.
z string Reserved for future use.
width string Width for the widget for 2D pages.
Element Attribute
Structure Name Content Description
web
  • label
  • icon
name string
type string
flavour string Selection of a display variant. See also flavour.
color string
styling string
class string Add this value to the CSS class so that it can be formated by a user provided style sheet.
web
  • label
  • #text
  string Text to display a label for the widget.

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Web widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

Footnotes

[1]The simple view might not show everything. To see all elements/attributes use the expert view.
