The Rgb widget

Available since version: 2012
Author: Christian Mayer

Description

With the RGB widget you can display a colour in the visu.

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: visu-config-details.

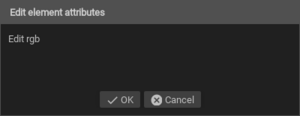

The behaviour and appearance of the Rgb widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the Rgb-element

Element Attribute
  Name Content Description
rgb flavour string Selection of a display variant. See also flavour.

Allowed child-elements und their attributes

Element Attribute
Structure Name Content Description
rgb
  • layout
colspan decimal Amount of coloumns this widget sould be wide.
colspan-m decimal Overrules the amount of coloumns on a medium screen.
colspan-s decimal Overrules the amount of coloumns on a small screen.
rowspan decimal Amount of rows this widget should be high.
x string Horizontal position of the widget for 2D pages.
y string Vertical position of the widget for 2D pages.
z string Reserved for future use.
width string Width for the widget for 2D pages.
Element Attribute
Structure Name Content Description
rgb
  • label
  • icon
name string
type string
flavour string Selection of a display variant. See also flavour.
color string
styling string
class string Add this value to the CSS class so that it can be formated by a user provided style sheet.
rgb
  • label
  • #text
  string Text to display a label for the widget.
Element Attribute
Structure Name Content Description
rgb
  • address
transform string
mode disable, read, write or readwrite
variant string
format-pos decimal
rgb
  • address
  • #text
  string The GA (like: 12/0/7) for KNX-backends or the item name for openHAB-backend

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Rgb widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

Footnotes

[1]The simple view might not show everything. To see all elements/attributes use the expert view.
