The Include element

Available since version: 0.8.0 (2012)
Author: Christian Mayer


Includes other configuration snippets. Note that this is no widget shown in your visualization it just gives you the opportunity to split you configuration into multiple files. If you have a large configuration file splitting it up might help to keep track of your configuration. The path to the included files must be relative to the root folder (the one with the index.html).


 <include src="config/part1.xml"/>
 <include src="config/part2.xml"/>


For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: visu-config-details.

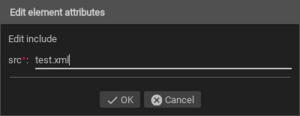

The behaviour and appearance of the Include widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and can be omitted.

Allowed attributes in the Include-element

Element Attribute
  Name Content Description
include src URI

Allowed child-elements und their attributes



It is possible to manually edit the visu_config.xml and add an entry for the Include widget.


Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!


[1]The simple view might not show everything. To see all elements/attributes use the expert view.
