The Group widget

Available since version: 0.8.0 (2012)
Author: Christian Mayer

Description

A group can be used to group a couple of widgets and optionally surround them with a border or name the group.

Settings

For a general understanding of how the configuration files are structured and what elements and attributes are it is recommended to read this section first: visu-config-details.

The behaviour and appearance of the Group widget can be influenced by using certain attributes and elements. The following tables show the allowed attributes and elements and their possible values. The screenshots show, how both can be edited in the editor.

Attributes underlined by ..... are mandatory, all the others are optional and be omitted.

Allowed attributes in the Group-element

Element Attribute
  Name Content Description
group name string Name/title of the group
nowidget true or false
flavour string Selection of a display variant. See also :ref:’flavour’.
target string The name of the page, that should be shown.
align left, right or center
class string Add this value to the CSS class so that it can be formated by a user provided style sheet.

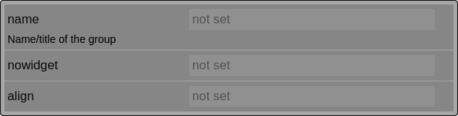

../../../_images/en_config_widgets_group_index_editor_attributes.png

Attributes in the editor (simple view) [1]

Allowed child-elements und their attributes

All widgets and plugins are allowed in a group.

Examples

It is possible to manually edit the visu_config.xml and add an entry for the Group widget.

Caution

Make sure that you only use UTF-8 encoded characters by settings the encoding in your XML-editor to UTF-8 mode!

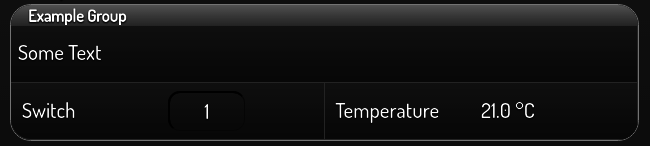

../../../_images/group_with_border.png

Group with border and name

<group name="Example Group">
   <layout colspan="6"/>
   <text><label>Some Text</label></text>
   <switch>
     <layout colspan="3"/>
     <label>Switch</label>
     <address transform="DPT:1.001" mode="readwrite">0/0/0</address>
   </switch>
   <info format="%.1f °C">
     <layout colspan="3"/>
     <label>Temperature</label>
     <address transform="DPT:9.001">0/0/1</address>
   </info>
 </group>
../../../_images/group_without_border.png

Hidden Group: no border no name

<group nowidget="true">
   <layout colspan="6"/>
   <text><label>Some Text</label></text>
   <switch>
     <layout colspan="3"/>
     <label>Switch</label>
     <address transform="DPT:1.001" mode="readwrite">0/0/0</address>
   </switch>
   <info format="%.1f °C">
     <layout colspan="3"/>
     <label>Temperature</label>
     <address transform="DPT:9.001">0/0/1</address>
   </info>
 </group>
